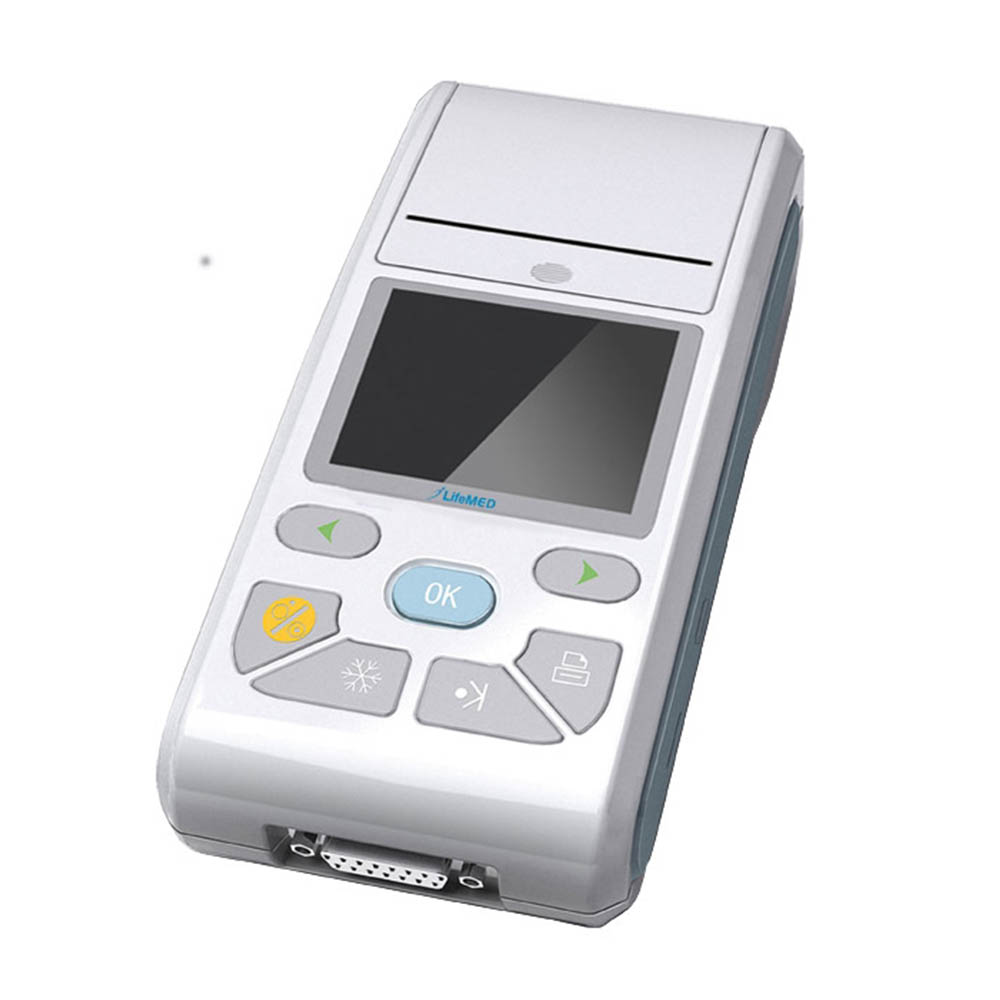

Portable handheld instrument for the acquisition and printing of 12-lead electrocardiographic traces with interpretation and measurements.

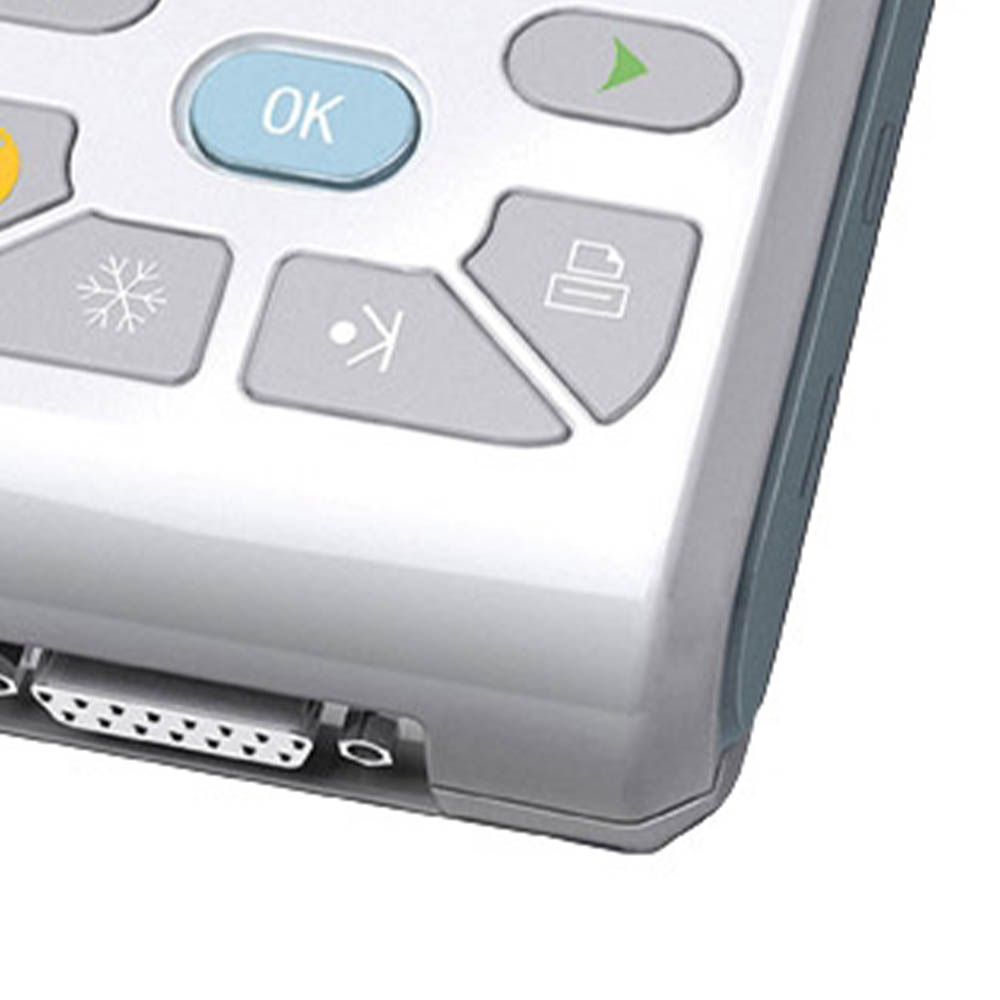

Equipped with a 2.8” touch-screen color LCD display and a small intuitive keyboard for managing the ECG exam.

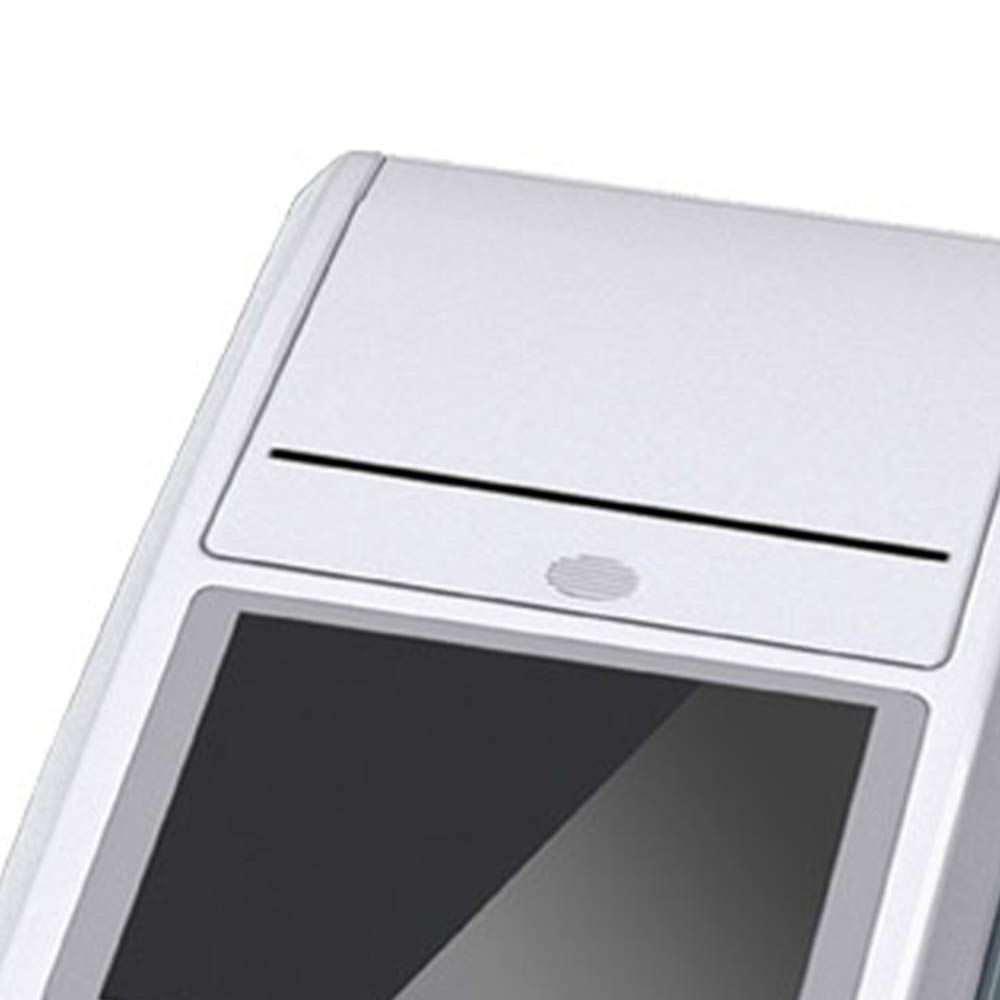

Thanks to the integrated, high-resolution thermal printer, the electrocardiogram is documented quickly, both automatically and manually.
ECG-90 is powered both by the mains and by a lithium battery which allows for an operating autonomy of 4 hours in continuous use and 150 electrocardiogram printouts.
This feature is particularly appreciated for patient-home examinations. It is equipped with software that allows ECG examinations to be managed on a personal computer, with recording, analysis, and interpretation of the waveform.

• real-time track recording.
• display of 3, 6 or 12 leads of the ECG trace;
• filters for the suppression of electrical noise, anti-drift of the isoelectric line and EMG filter;
• 50 mm heat-sensitive paper, available in rolls;
• storage of up to 100 tests on SD card.

CND: Z12050301
Repertoire: 1313360

12-lead simultaneous acquisition mode
Display of ECG trace, heart rate, date and time, filters, sensitivity, printing speed, alarm messages, battery charge status indicator
Automatic, manual mode
Measurement parameters: heart rate, PR interval, QRS duration, QT/QTC interval, P/QRS/T axis, RV5/SV1 amplitude, RV5+SV1 amplitude
3, 6, 12-lead waveform display modes
Recording format 3 x 4; 6 x 2; 6 x 2 + 1 rhythm; 12 x 1; 12 x 1 + 1 rhythm
Recording speed 6.25, 12.5, 25, 50 mm/s

For this type of product, being an item for medical and/or personalized use, it is not possible to request a RETURN/WITHDRAWAL and REFUND of the product itself for health, hygiene and product safety reasons.



code: ECG-90
