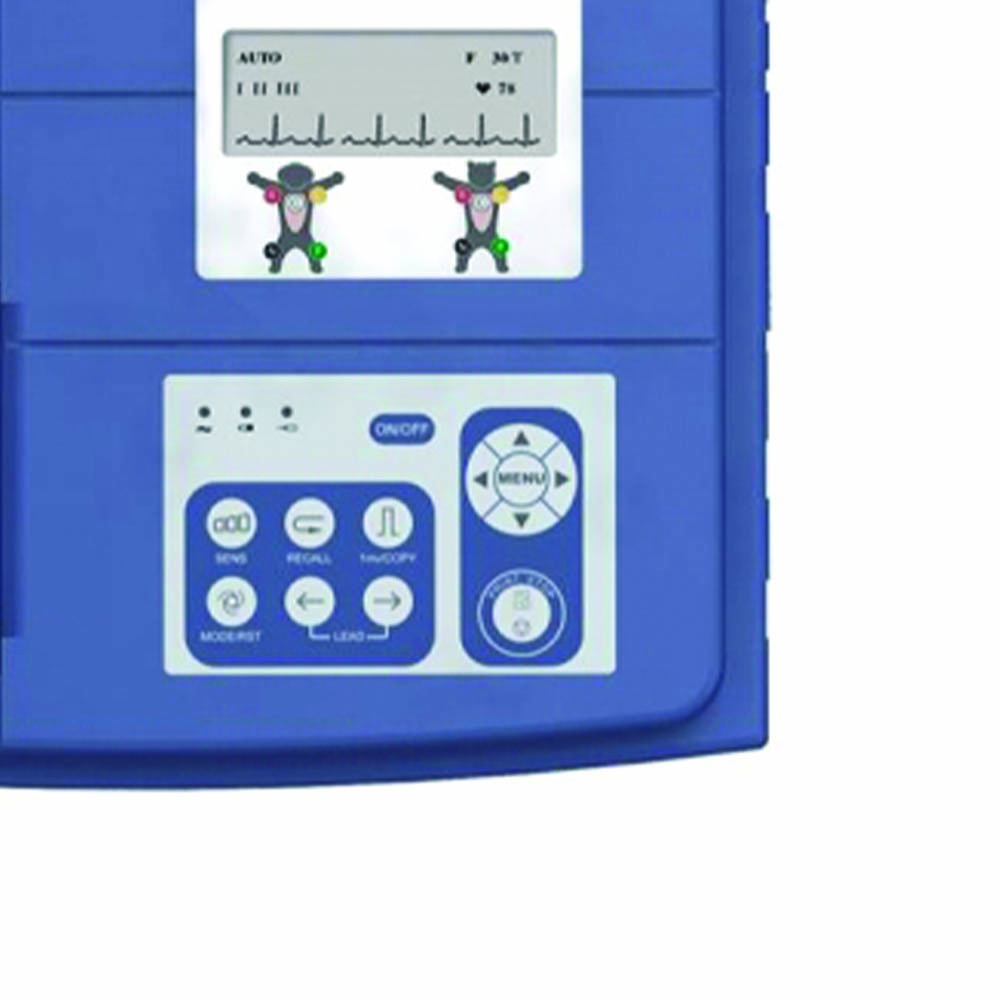

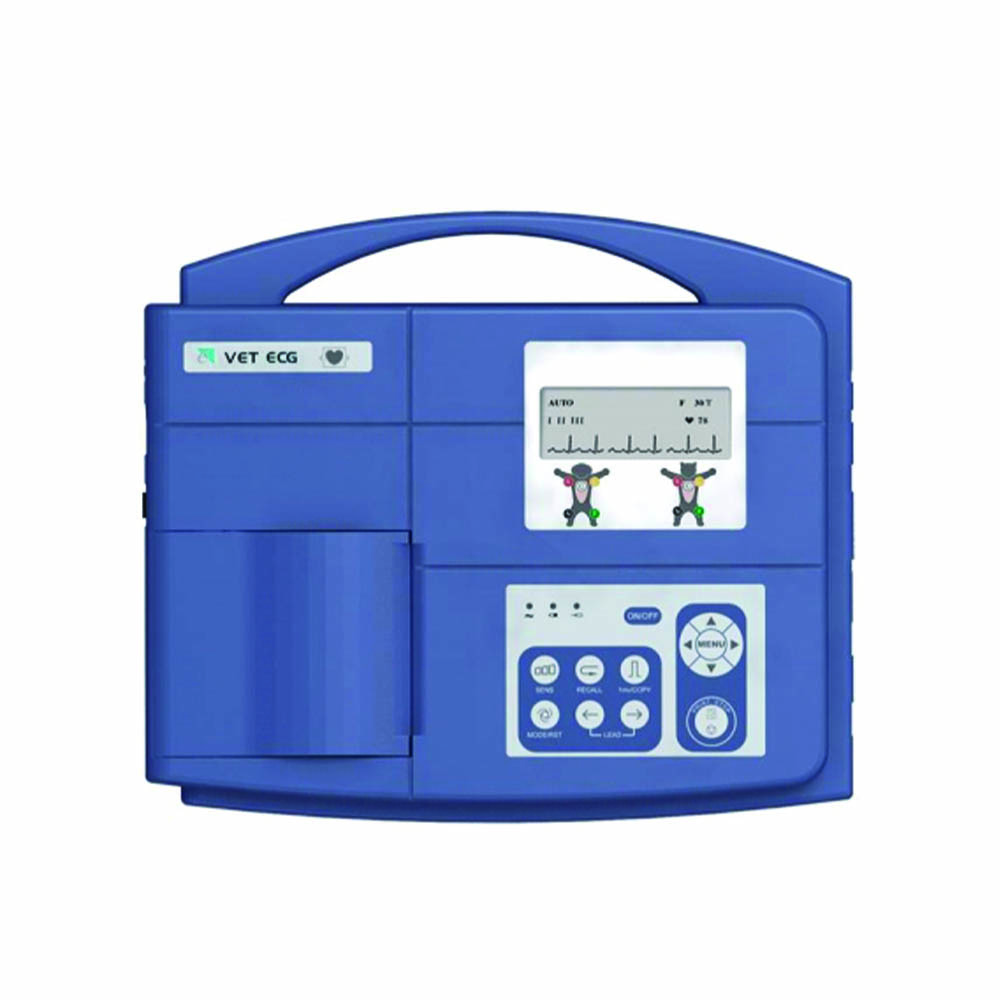

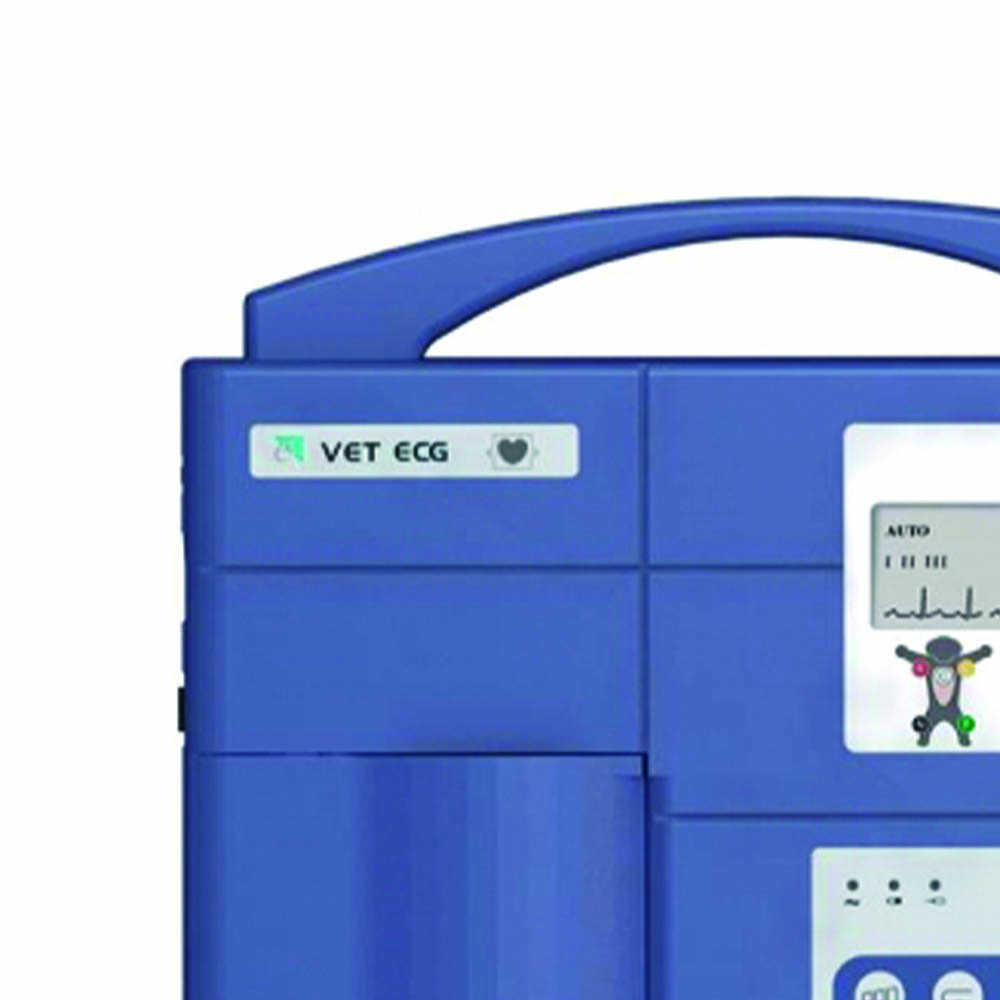

Electrocardiograph with fully digital signal management

- fully digital signal management
- LCD display with waveforms, configurable parameters
- high resolution thermal printer - built-in rechargeable Li-Ion battery for 6.5 hours of use (AC/DC power supply)
- Full digital filter, avoid baseline deviation, AC, EMG interference
- Automatically adjustable baseline, optimizes print position
- selectable auto/manual function

Automatic acquisition with 12 leads, automatic measurement and analysis of ECG parameters, supports an inkjet printer via USB for printing 12 leads, data storage of 120 patients and transfer via USB flash disk, Ethernet or serial port, review and management of ECG data on Windows PC via software (optional)

Technical features:
Leads: standard 12 channels
Acquisition method: 12 channels simultaneously
Frequency response: 0.05Hz ~ 150Hz
Sensitivity: 2.5, 5, 10, 20 (mm/mV)
Input impedance: >50 MO (10 Hz)
Filters: EMG filter 25/35/45Hz / off
Filter:
- DFT filter 0.05/0.15/0.25/ 0.32/0.5/0.67 Hz
- Low pass filter 150/100/75 Hz
- AC filter on/off
Recording Mode: Auto/Manual/Rhythm/OFF/USBPRT
Safety standard: IEC I/CF
Power supply: AC: 100-115-220-240 V, 50/60 Hz
Built-in rechargeable 14.8V lithium battery More than 6.5 hours, continuous working time on battery power
Thermal paper: 80 mm x 20 m
Printing speed 5/6.25/10/12.5/25/50 mm/s (± 3%)
Dimensions: 300 x 260 x 75 mm
Weight: 2.5 kg (battery included)
Display: LCD 192 x 64 pixels
External input/output
- Input: =100 kO; Sensitivity: 10 mm/V ± 5%
- Output: =100 kO; Sensitivity: 1 mm/V ± 5%
- Communication interface: Ethernet, RS232, USB

Included:
1 5-lead veterinary ECG cable (Ø 4 mm, banana plug, IEC)
5 Veterinary clip-on electrodes (for ECG cables Ø 3-4 mm)
1 roll of paper
1 Rechargeable lithium battery (2200 mAh)
1 Manual in: GB, IT - FR, ES, DE on request

For this type of product, being an item for medical and/or personalized use, it is not possible to request a RETURN/WITHDRAWAL and REFUND of the product itself for health, hygiene and product safety reasons.



code: LTV405S
