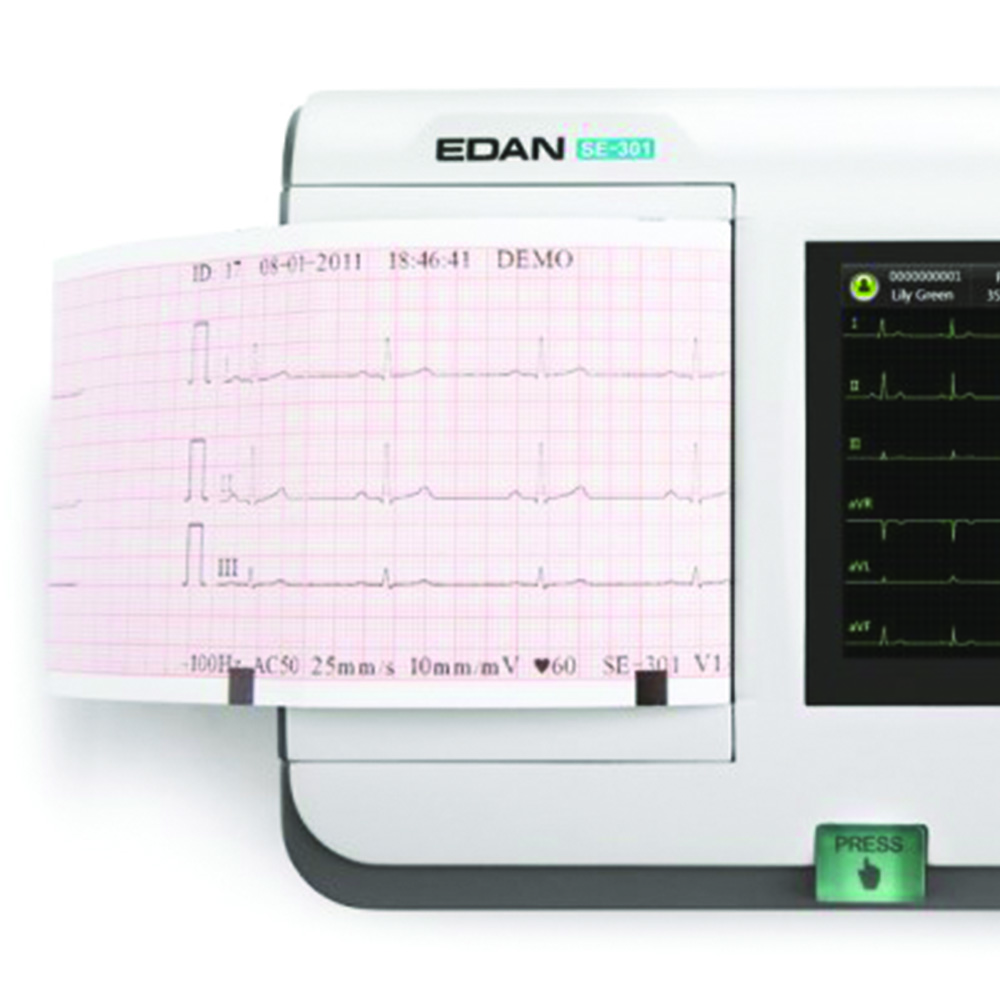

The new Edan SE-301 ECG is ultra-compact, lightweight and easily transportable.
Equipped with high resolution color screen and touch screen system.
Acquisition of 12 tracks simultaneously, sampling up to 120 seconds and storage of up to 500 recordings.
Possibility of memory extension with USB flash disk and micro SD card and external printing via USB port and export of the layout to PDF.
Equipped with built-in lithium ion battery.
Bi-directional ECG/computer connection via software (optional)
Possibility of connecting barcode reader (optional)

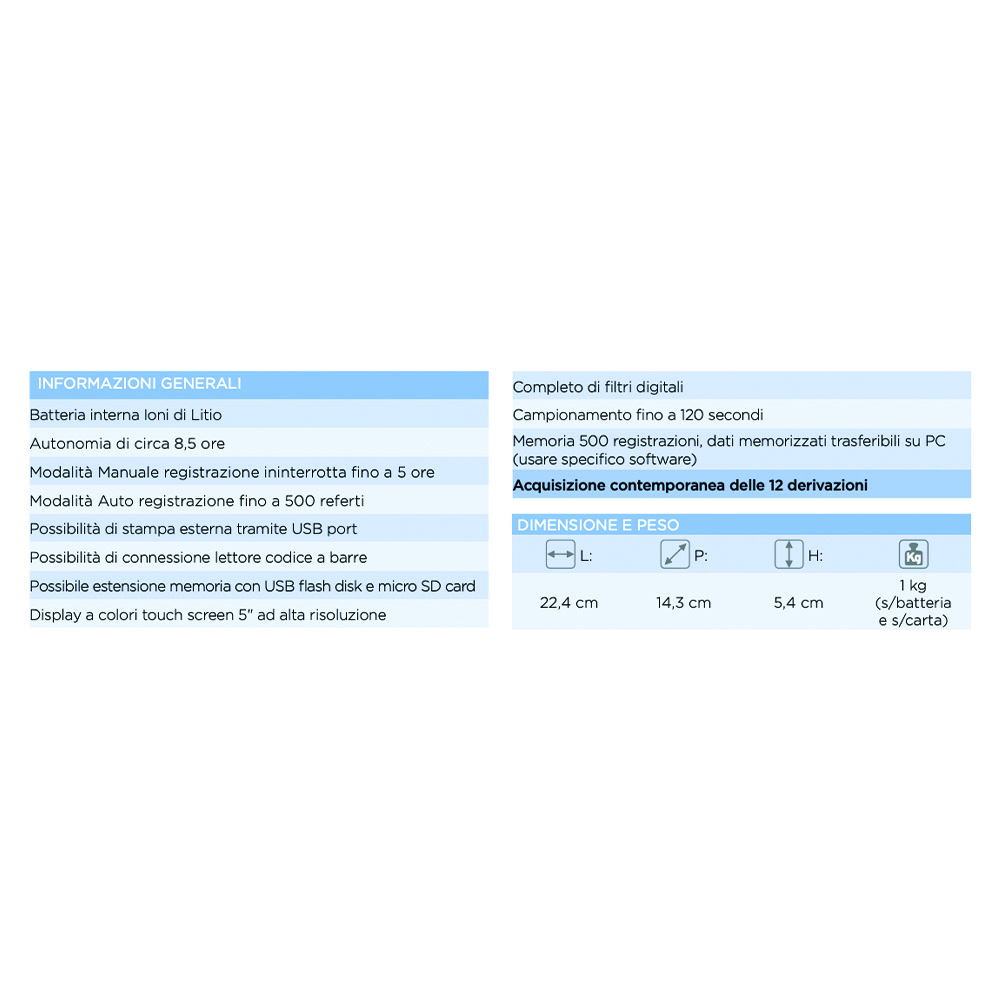

General characteristics:
- Internal Lithium Ion battery
- Battery life of approximately 8.5 hours
- Manual mode uninterrupted recording for up to 5 hours
- Auto recording mode up to 500 reports
- Possibility of external printing via USB port
- Possible memory extension with USB flash disk and micro SD card

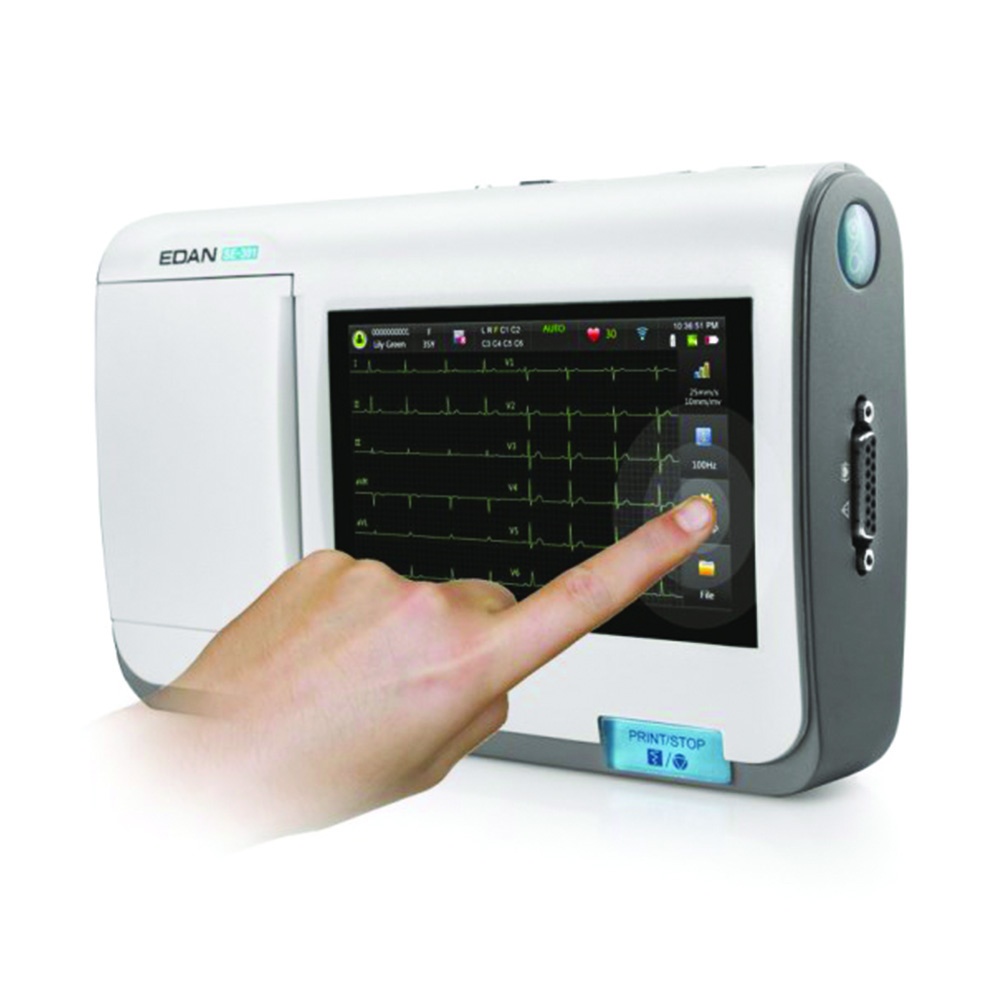

- High resolution 5" touch screen color display
- Complete with digital filters
- Sampling up to 120 seconds
- Memory of 500 recordings, stored data transferable to PC (use specific software)
- Simultaneous acquisition of 12 tracks

Technical features:
References
Safety standards
IEC 60601-1:2005/A1:2012, EN 60601-1:2006/A1:2013, IEC/EN60601-1-2: 2007, EN60601-1-2:2007/AC:2010, IEC 60601-2-25 :2011
Classification: Class I with internal power supply
Anti-shock type: Anti-shock grade Type CF
Technical specifications
Working mode: Continuous operation
EMC: CISPR 11 Group 1, Class A
Screen: LCD 800x480 pixels
Diet
Mains power: Operating voltage = 100V~240V - Operating frequency = 50/60Hz - Power adapter output voltage = 19V, 2A - Rated voltage = 14.8V
Built-in lithium battery: Rated capacity = 2500 mAh - Charging time ≤ 3.5 hours - Cycle life ≥ 300 charging cycles
Thermal printer
Thermal paper: Rolled 80x20 mm
Effective width: 72 mm
Printing speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s ±3
Data accuracy: ±5 (x-axis), ±5 (y-axis)
HR Recognition: Peak to Peak Detection System (HRV)
HR range: 30 BPM ~300 BPM
Accuracy: ±1BPM
Leads: 12 tracks
Acquisition mode: 12 simultaneous tracks
A/D resolution: 24 bit
Time constant: ≥3.2s
Frequency Response: 0.01Hz ~ 300Hz (-3dB)
Sensitivity: 2.5, 5, 10, 20, 10/5, 20/10 (mm/mV), AGC
Input impedance: ≥ 50 Mohm (10Hz)
Input circuit current: ≤0.01 µA
Input voltage range: ≤ ±5 mVpp
Calibration voltage: 1mV±3
DC offset voltage: ±600mV
Noise: ≤12.5 µ Vp-p
Multi-channel crosstalk: 0.5mm
Filters: AC Filter: On/Off - DFT Filter: 0.01/0.05/0.32/0.67Hz - EMG Filter: 25Hz/35Hz/45Hz/OFF - Lowpass Filter: 300Hz/270Hz/150Hz/100Hz/75Hz
CMRR: ≥140dB (CA On) - ≥110dB (CA Off)
Sampling rate: 1600Hz
Pacemaker detection
Amplitude: ±2 mV ~ ±700 mV
Width: 0.1ms~2.0ms
Sampling rate: 16,000/sec/channel
Dimensions: 22.4 x 14.3 x 5.4 cm
Weight: 1kg (excluding battery and paper)

Supplied:
1 EDAN SE-301 main unit
1 10-Lead ECG Patient Cable (Banana Terminal)
1 Set of peripheral electrodes for adults
1 Set of precordial electrodes for adults
1 power supply
1 Battery
1 Roll of thermal paper
1 User manual

code: LTD408
