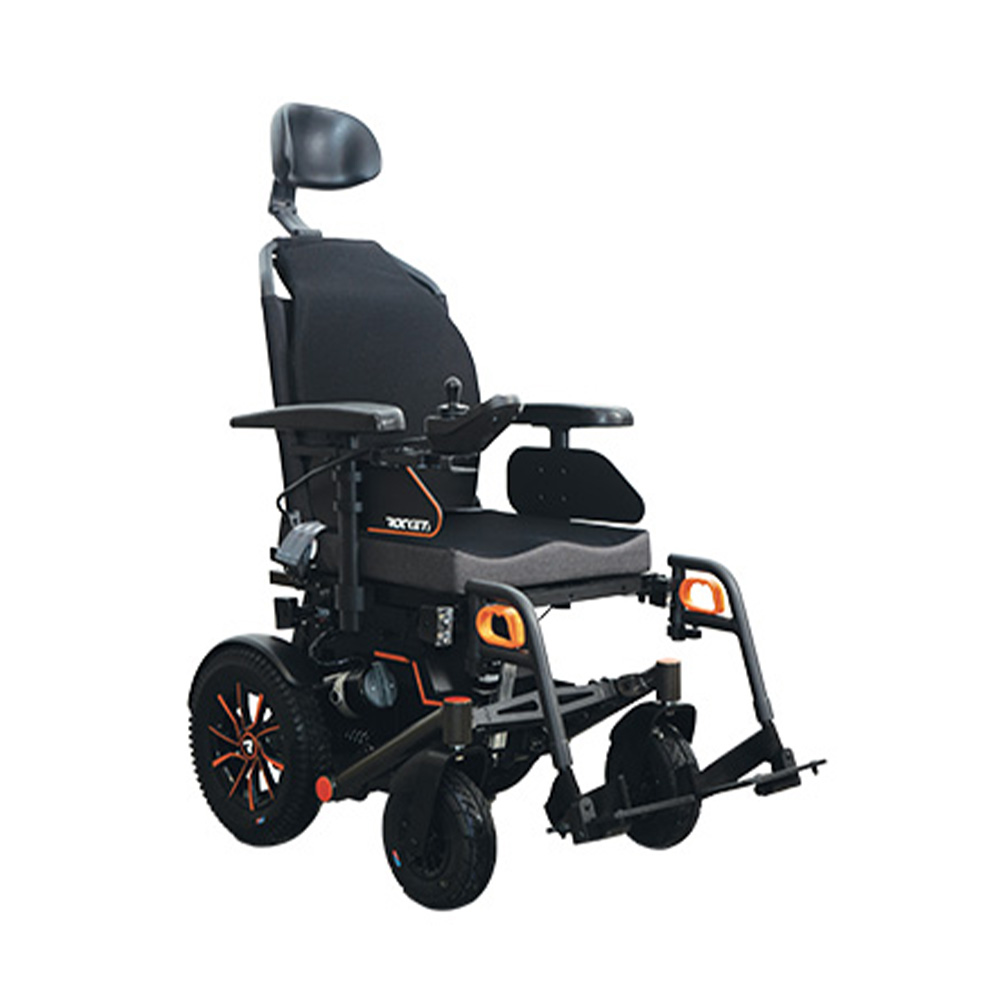

Compact electric wheelchair for outdoor use.
This model is equipped with a suspension system designed to overcome
uneven surfaces, rough terrain, paths, and obstacles. The special technology
of the frame ensures great stability while driving: Rocket 5 is able to descend in
total safety from barriers up to 14 cm high and to guarantee a high level of comfort
even on the most difficult terrain.

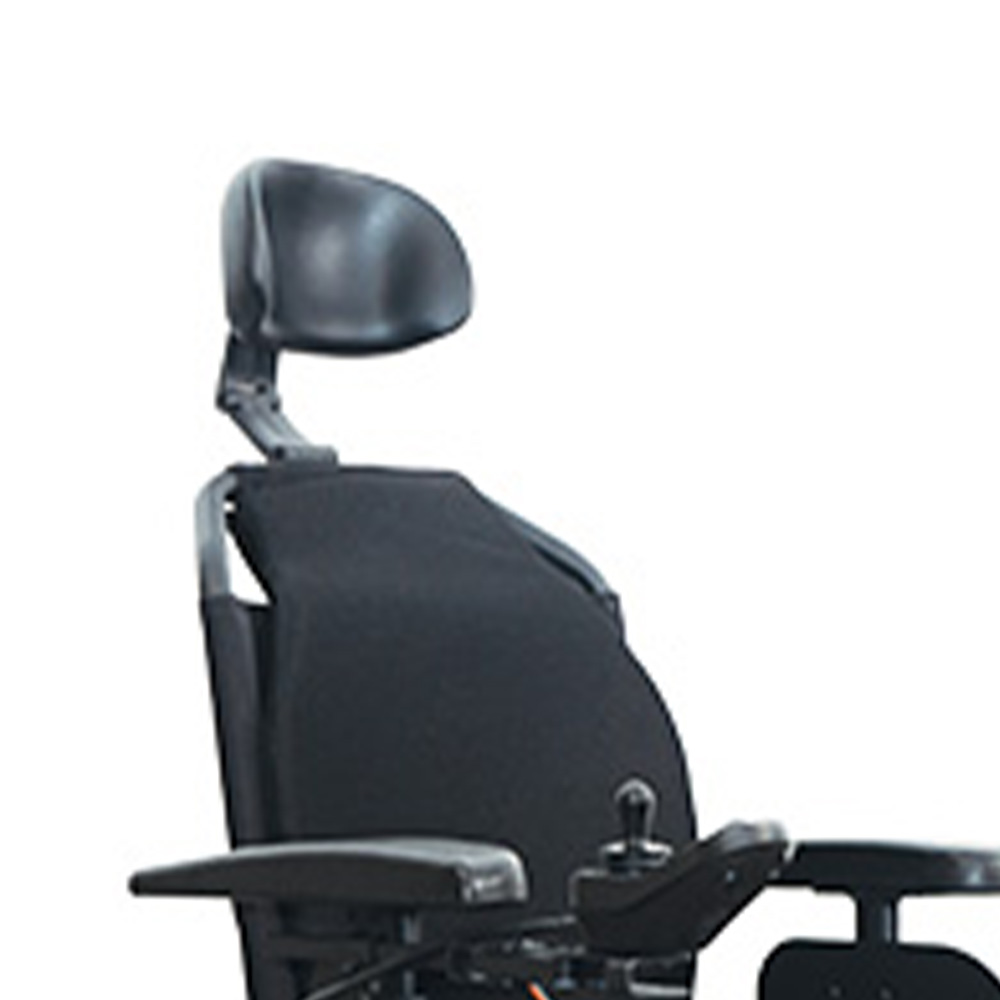

• Tensionable backrest complete with cover
• Seat adjustable in depth and width
• Visco-elastic cushion as standard
• Electronic tilting system from 0° to 28°
• Manual backrest inclination adjustment system from 0° to 38°
• Removable armrests, adjustable in height and width, equipped with a clothes rail
• Depth-adjustable, foldable, extractable, internally rotating leg rests with band
adjustable calf support

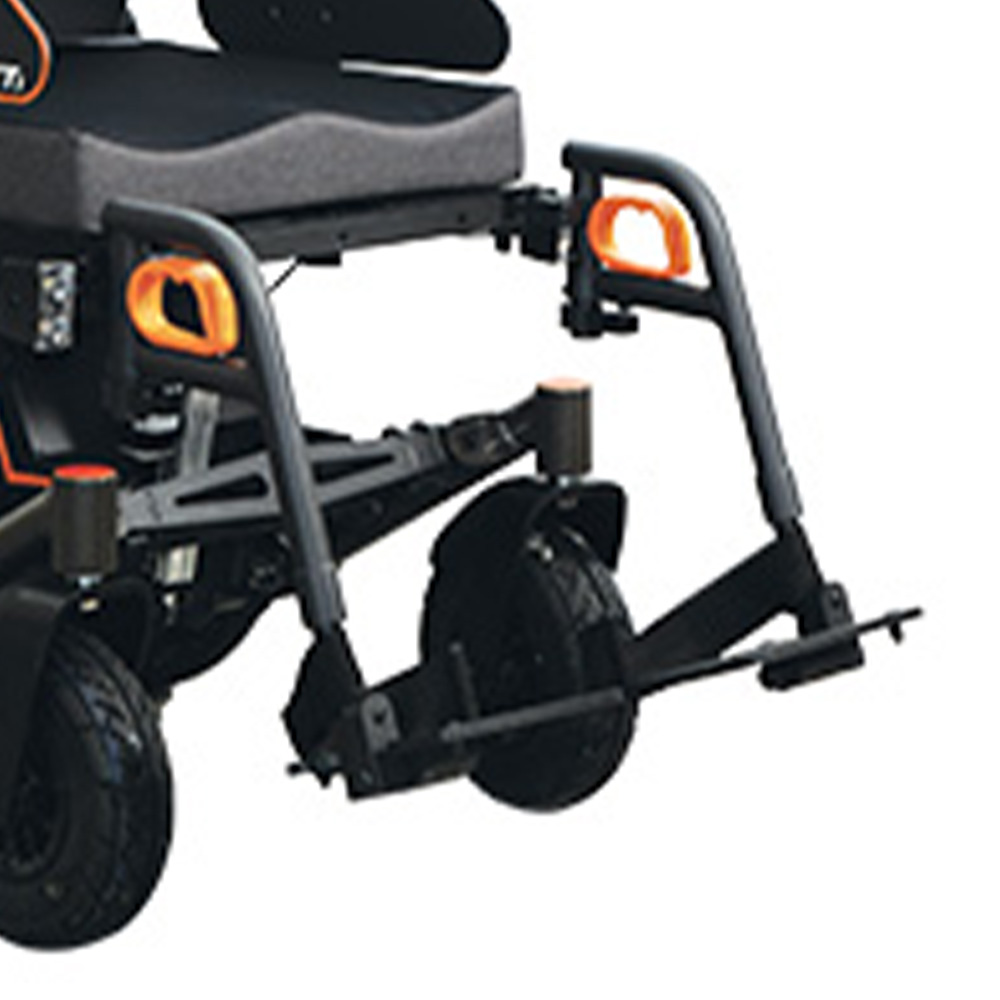

• Footrests in flexion-extension and height: they can be joined to form a
single platform
• Pelvic belt and anti-tip wheels as standard
• Possibility to move the joystick to the left armrest

Color BLACK
Dimensions Seat depth: 44 – 48 cm (+5 cm footrest)
Adjustable seat width: from 40 to 50 cm (+5 cm on each side)
Front ground clearance: 49 cm
Seat-footrest height: 37 to 45 cm
Maximum dimensions: seat width + 20 cm + armrest adjustment
Total depth: 115 cm with footrests, 85 cm without footrests (140 cm with control
(extended for maximum tilt and recline – without headrest)
Backrest height: 62 cm
Rear seat height: 49 cm
Front seat height: 50 cm
Armrest height: 21 to 34 cm
Total height: 110 cm (without headrest)
Electric tilt: from 0° to 28°
Manual backrest recline: 0° - 38°
Maximum climbable slope: 12°
Weight 66 kg (without battery)
93 kg (with battery)
Maximum load 135 kg
Power Supply Batteries: 2 x 12V 50 Ah
Charger: 24V 6A/8A
Maximum speed: 10 km/h
Autonomy: 35 km

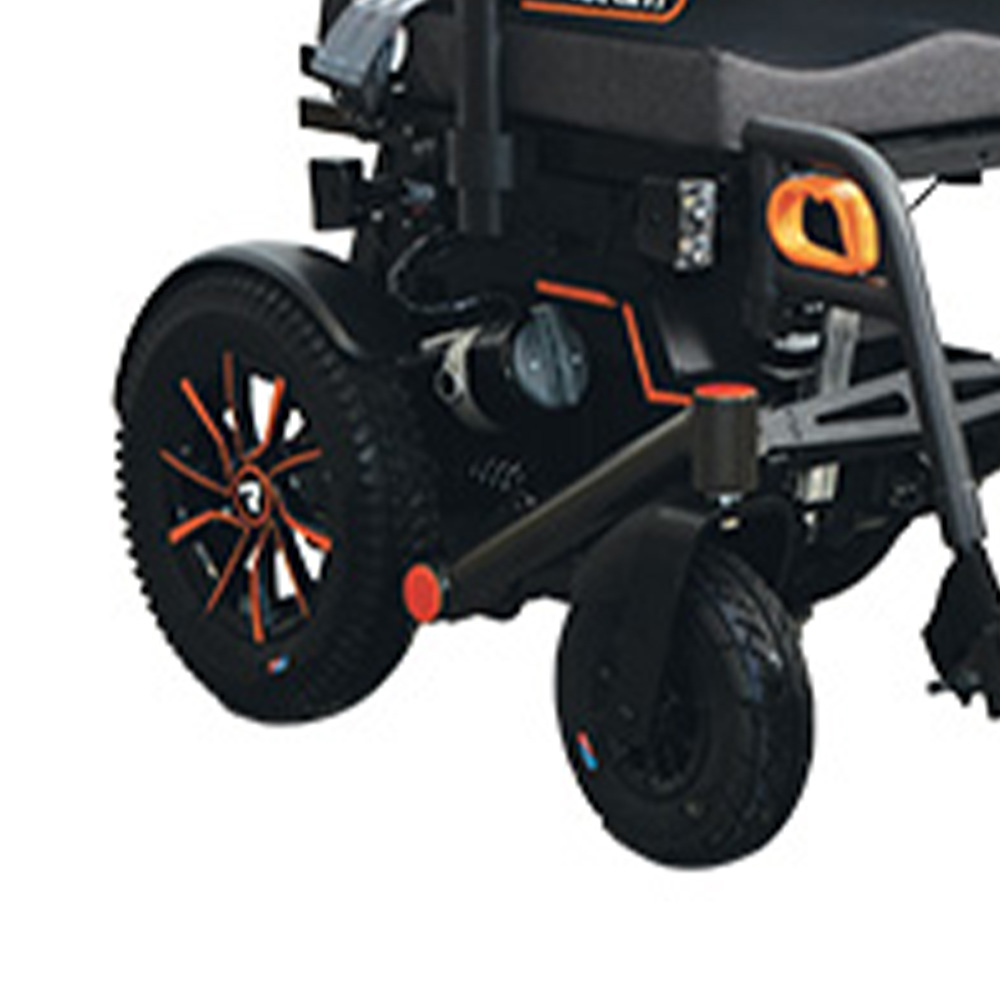

Front wheels: 9" pneumatic
Rear wheels: 14" pneumatic



barcode: 08054181768923
code: 17100005
