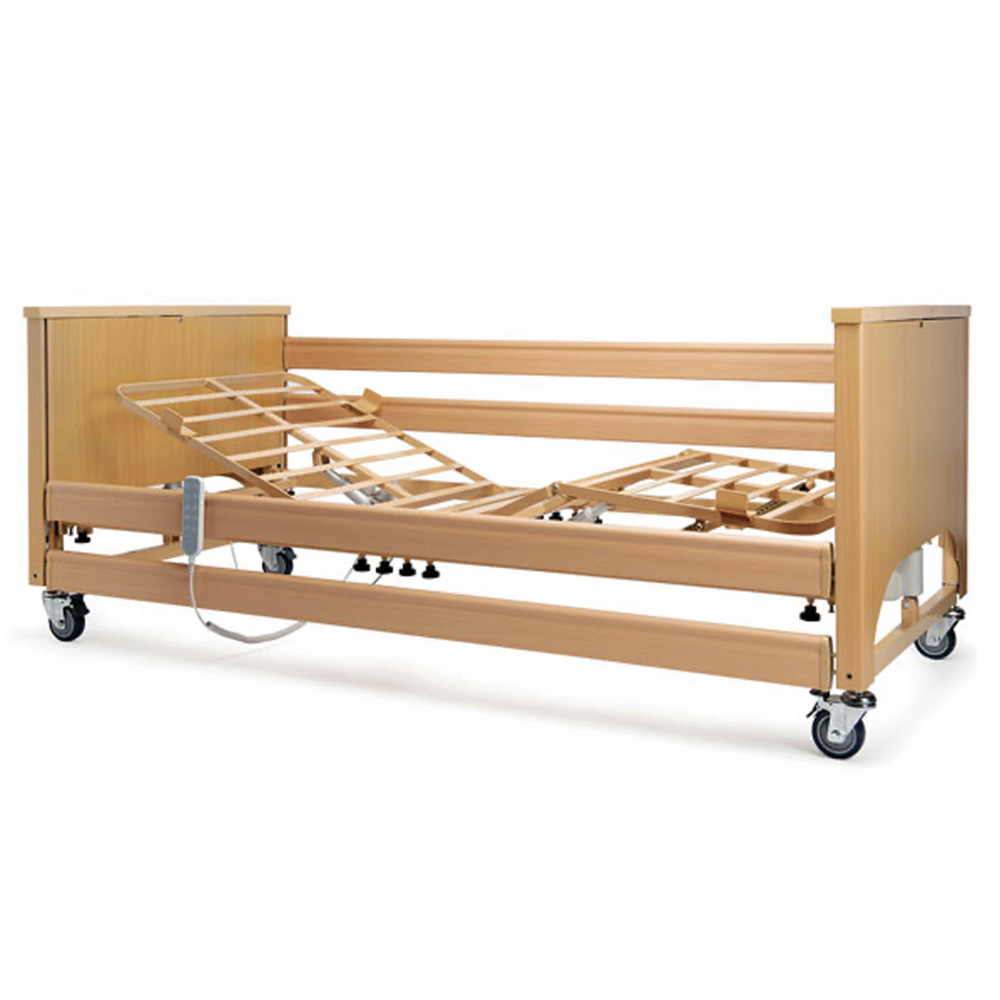

3-joint/4-section bed, variable height, fully electric movement.
Net frame - External perimeter load-bearing structure made of rectangular section steel profiles.
Frame of movable sections made of oval section steel tube.
Steel slatted base, non-removable mattress support guides.
Equipped with two supports for a lifting pole and an IV pole. Four-section mattress platform.

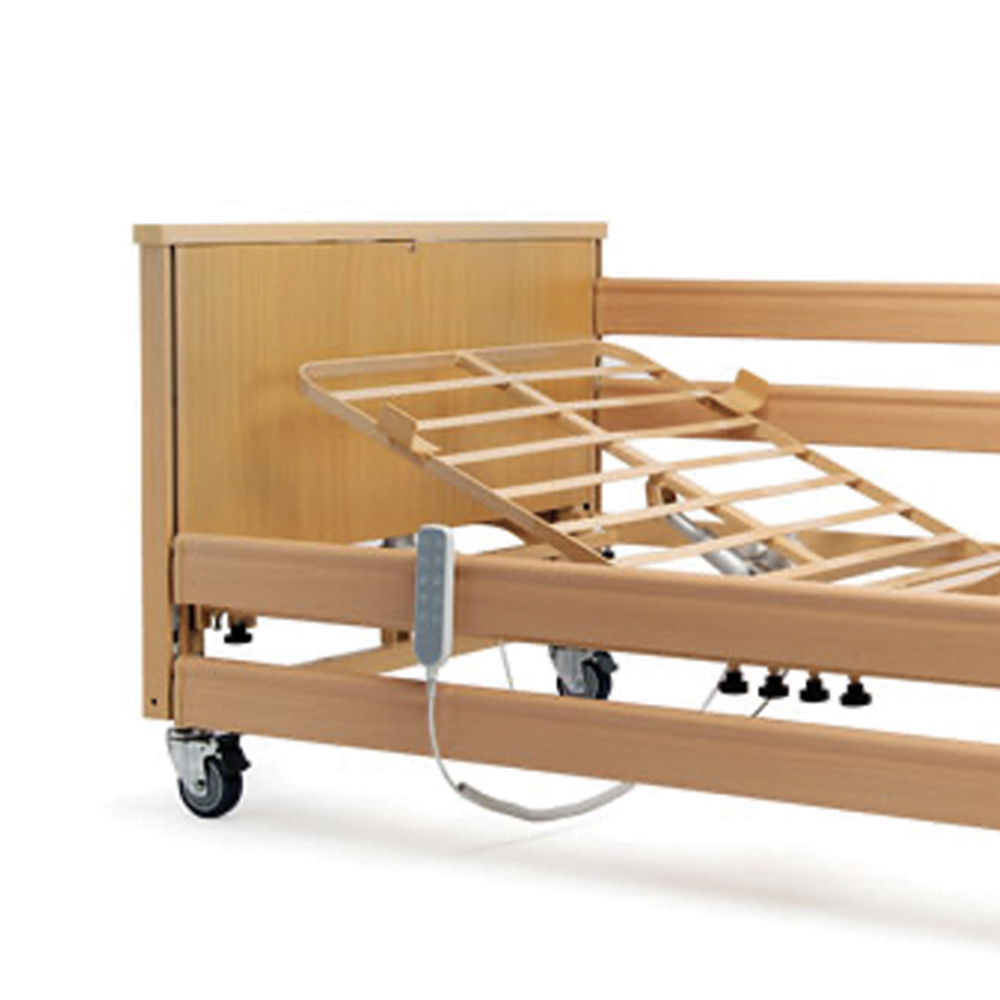

Headrest section and leg section adjustable by means of two 24V DC electric motors and a button panel.
Foot section with rack adjustment.
Fixed pelvis section. Shoulders – Internal structure in painted steel tube.
Cover made from a single block of wood with a natural beech finish, with top and side edges in solid wood, complete with built-in sliding guides for the insertion of side rails.

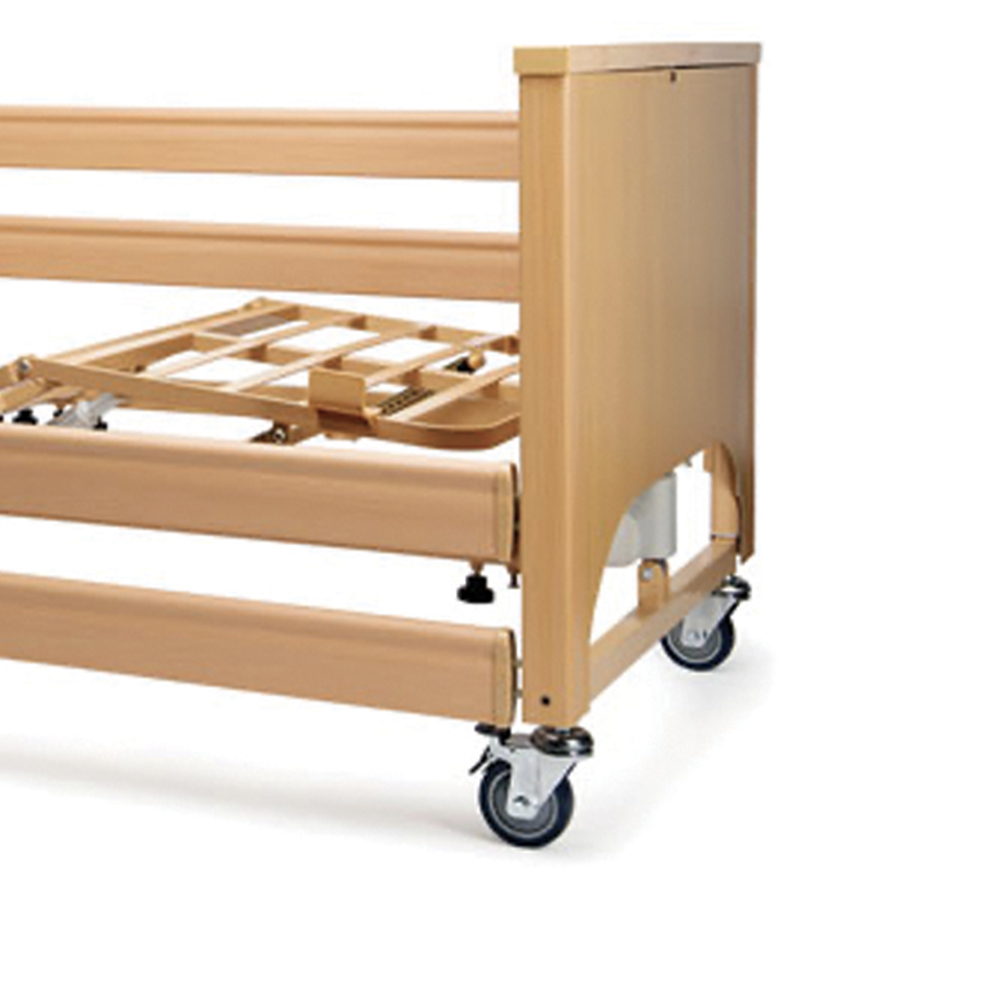

Legs - Integrated into the backrests complete with 4 125 mm diameter swivel casters, each equipped with an independent brake.
Variable height - The vertical movement of the bed base, ranging from approximately 40 cm. minimum height to 82 cm. maximum height, is adjustable by two independent electric motors inserted inside the bed headboard panels.
Trendelenburg - Trendelenburg movement up to 12° and reverse Trendelenburg movement up to -12° via a control on the same keypad.
Sides - Vertical sliding with two uprights with natural beech finish, fixed to the heads by means of sliding devices.
Upper and lower lock/unlock buttons for lowering and removing the sides.
Finish - Epoxy powder coating on a sandblasted surface. Color: Gray.

Dimensions:
Maximum load: 135 kg
Height from net to floor: 37 - 79 cm
Total external length: 210 cm
Total external width: 103 cm
Wheel diameter: 12.5 cm

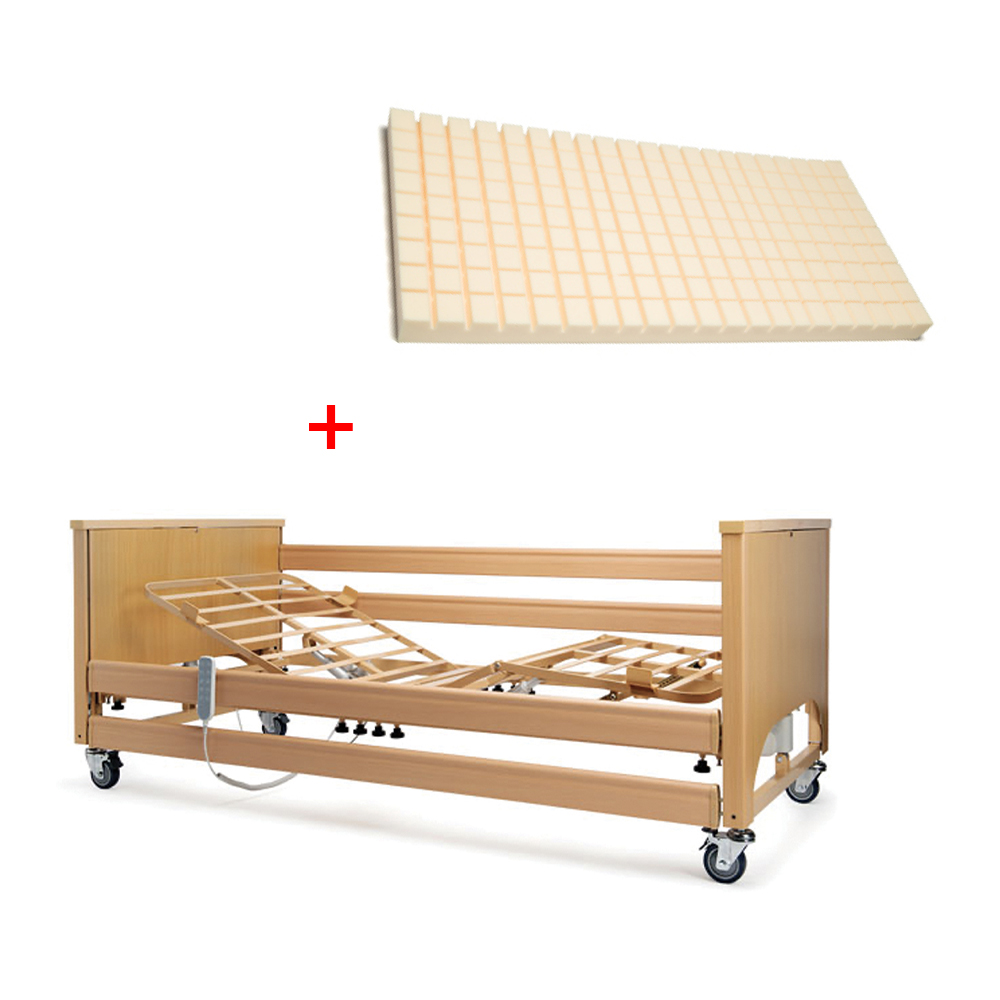

Included:
1 Patient lifting pole complete with triangle and adjustable nylon strap

Mattress:

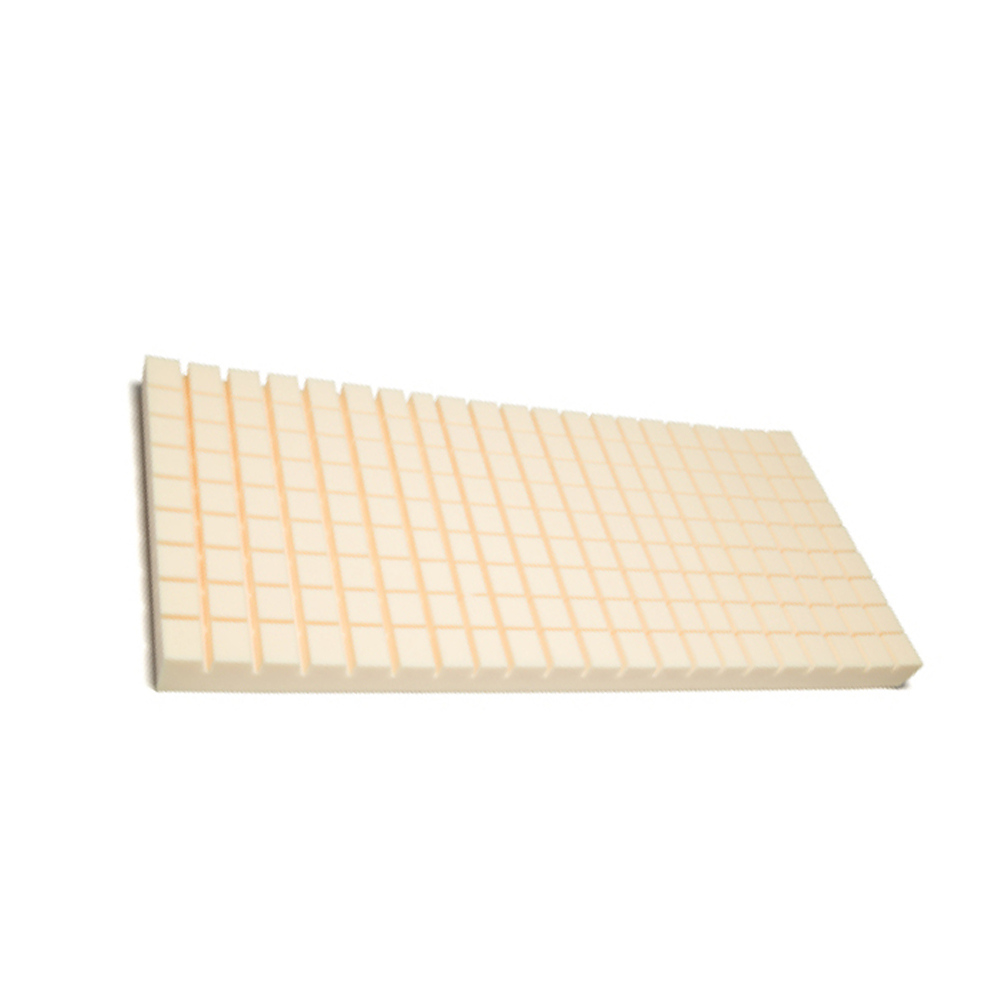

Ventilated anti-decubitus mattress made of flexible, non-deformable, high-strength polyurethane foam, with a homogeneous cellular structure and completely permeable to air.
Ventilated anti-decubitus mattress with truncated pyramids and a single slab.
• Made of flexible, non-deformable, high-resistance expanded polyurethane with a homogeneous cellular structure and completely permeable to air.
• Dimensions 195x90x12h cm

Technical features:
- Density: 35 Kg/m3.
- Module dimensions: 195 x 85 x 12 cm
- Maximum patient weight 150 kg

The A9501 mattress is intended for use in homes, hospitals, or communities as a medical device to prevent the formation of bedsores.
The product has an estimated shelf life of 5 years if used, stored and maintained according to the manufacturer's instructions.
The product requires no special maintenance. Check weekly, or whenever you see a risk, that the mattress has not become soiled or soaked in any kind of liquid.
Dry flat.
Do not iron.
Keep dry.
Keep away from open flames and heat sources.

Washing
Wash in lukewarm water at 30° with detergent for delicate clothes, do not wring and dry away from heat sources and sunlight.
Autoclave treatment with steam at 100°C for a maximum of 10 minutes.



code: A8935A-A9501
