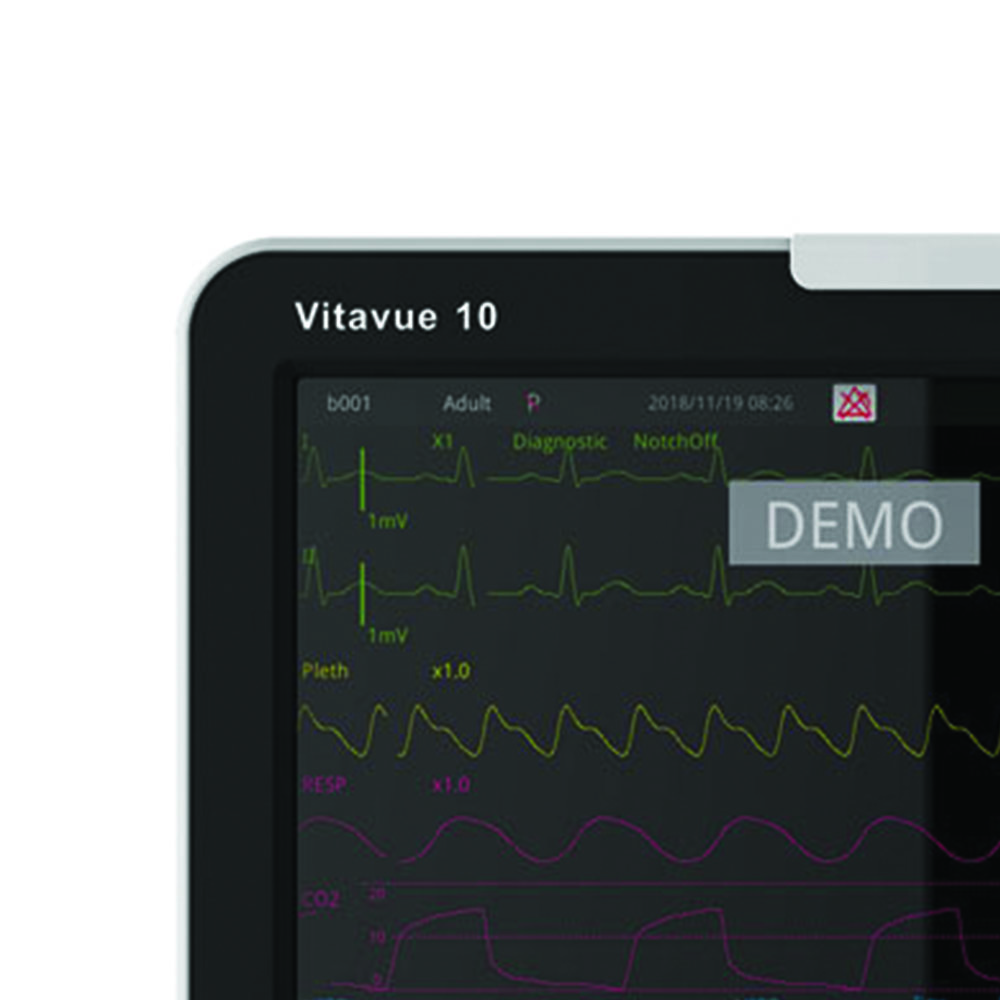

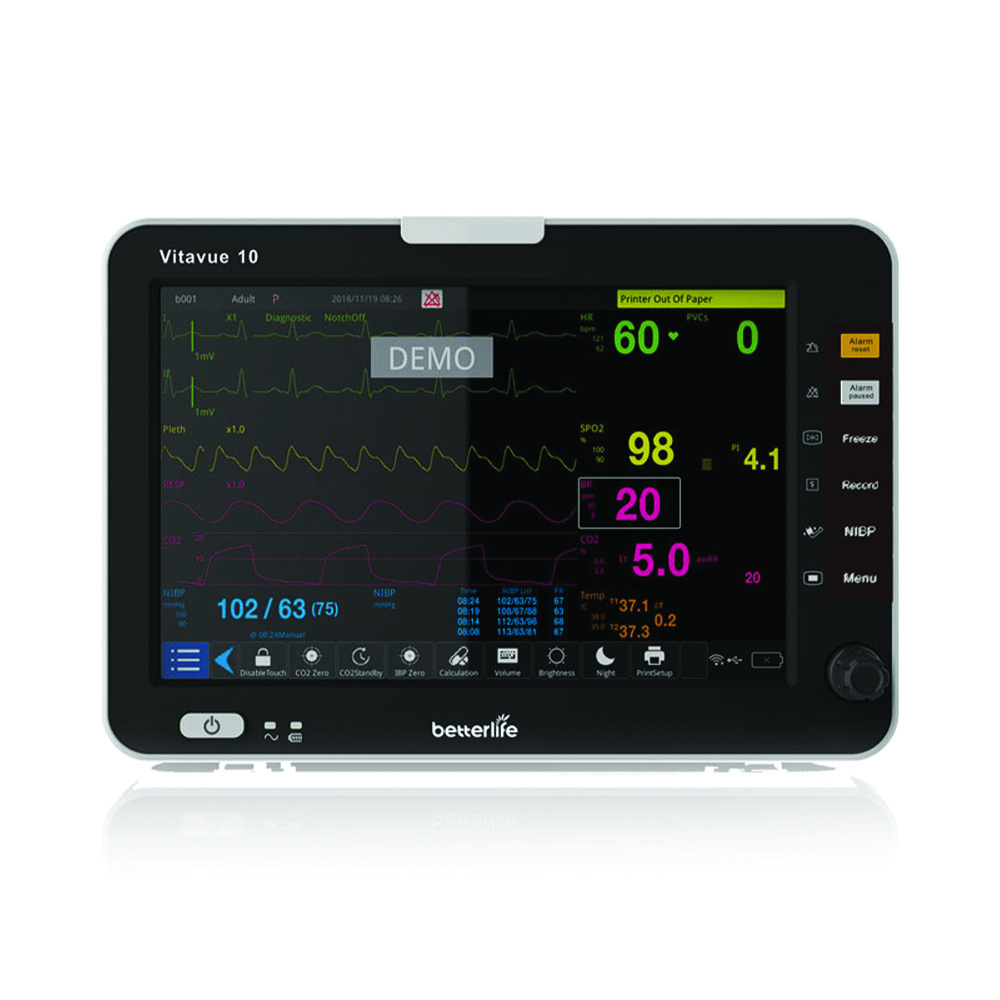

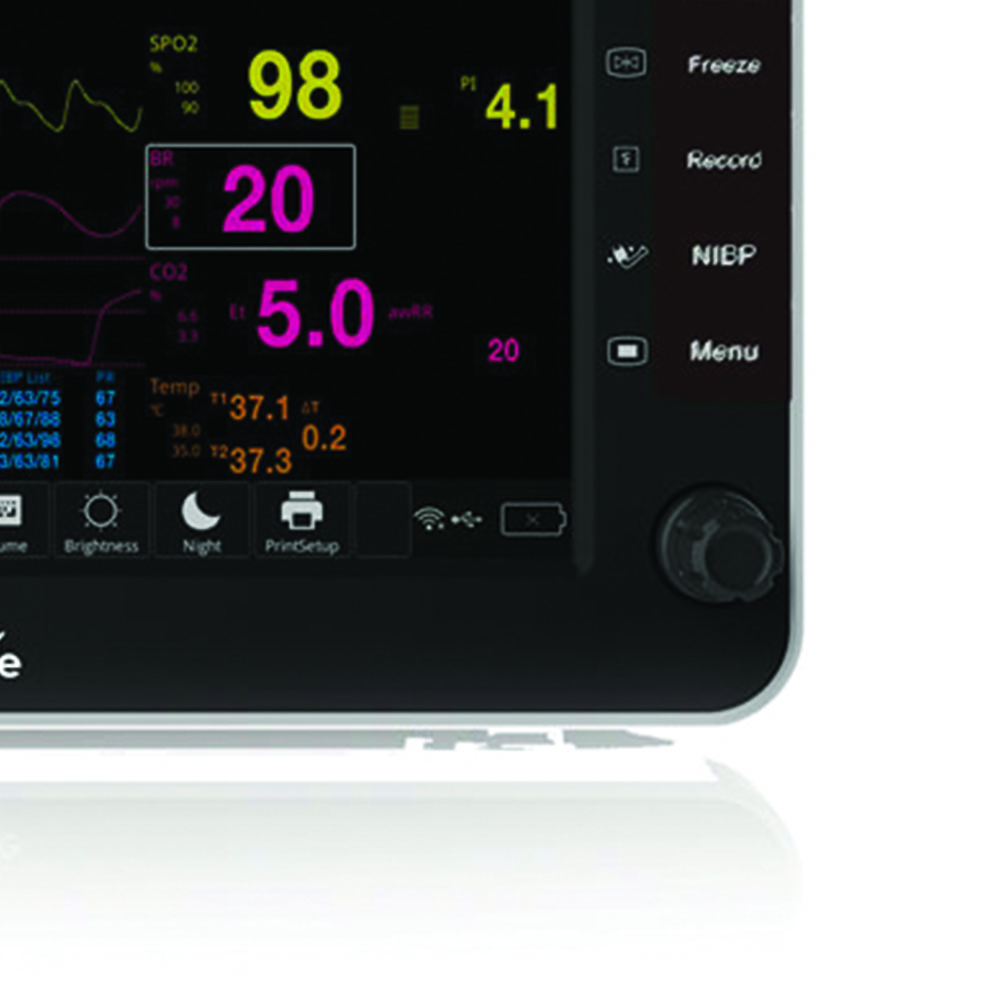

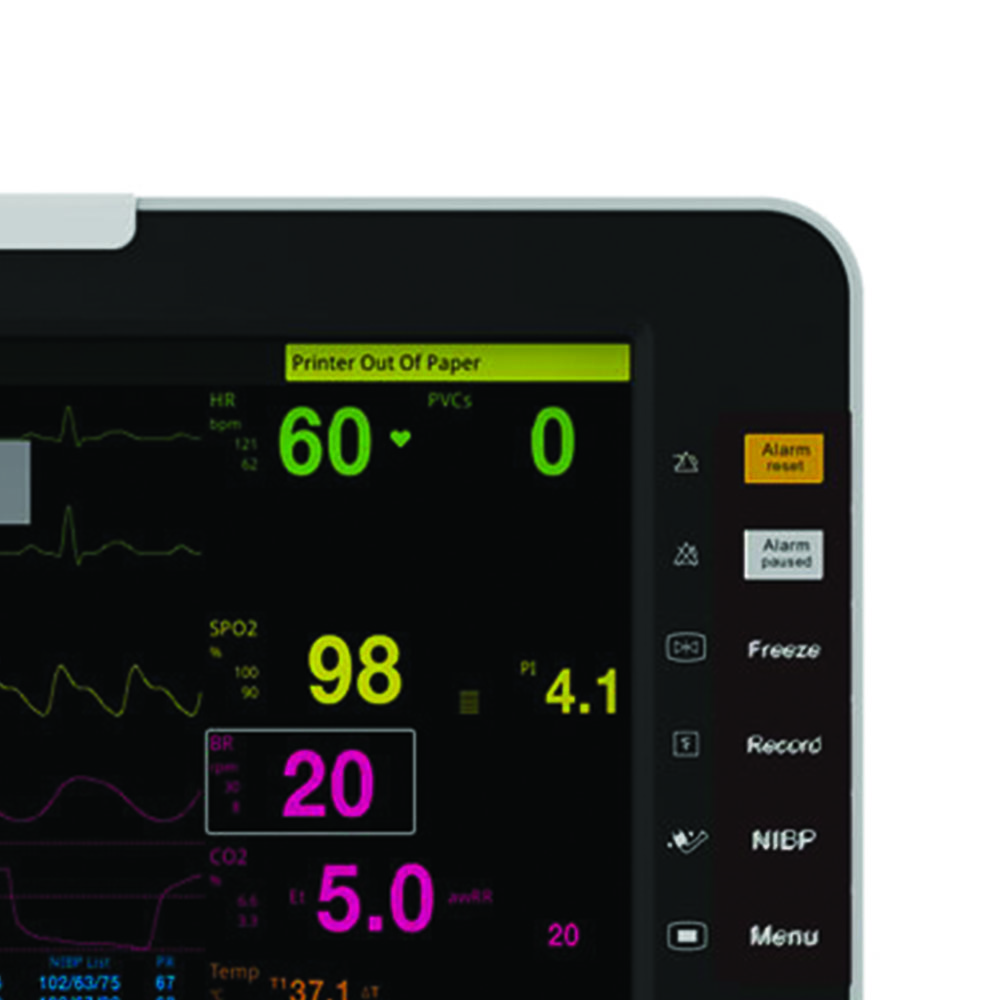

Multi-parameter monitor with high resolution display, resistant and compact structure, equipped with a comfortable handle for easy movement. 3-5-channel ECG display, RESP, SpO2, NIBP, PR, 2-TEMP. Arrhythmia and ST segment analysis. Pacemaker detention, defibrillation and electrosurgical interference protection. 168 hours of data storage and 4,000 NIBP measurements. 2 USB ports and ethernet port. Optional built-in printer.

Supplied accessories:
– 1 5-way anti-shock clip-on ECG cable
– 1 ECG electrode kit, adult, disposable
– SpO2 finger sensor, adult, reusable
– NIBP cuff, Adult, reusable
– NIBP tube
– Skin temperature probe, reusable
– Power supply (standard EUR)
– Earth cable
– Rechargeable lithium battery (2600 mAh)
Display
TFT-LCD: 10” touch screen
Resolution: 1280×800
Waveforms displayed: Up to 7
ECG
Leads: 5 leads and 3 leads selectable
Display sensitivity: Auto x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
Scan speed: 6.25, 12.5, 25, 50 mm/s
Heart rate range: (HR) 20~300 bpm
Resolution: 1 bpm
Accuracy: ±2bpm or 2%
CMRR: Diagnosis mode > 95dB; Monitoring mode > 105dB; Surgical mode > 105 dB
ST segment monitoring: Measurement range: -2.0 mV ~ 2.0 mV; Alarm range: -2.0mV ~ 2.0mV
RESP
Method: Transthoracic impedance
Bandwidth: 0.1Hz ~ 3Hz
RR measuring range: Adult 0~120rpm; Pediatric/Neonatal 0~150rpm
Accuracy: 6-150rpm: ±2rpm or 2% 0-6rpm: Not specified
Apnea alarm threshold: 10, 15, 20, 25, 30, 35, 40 s
SpO2
Measurement and alarm range: 0~100%
Resolution: ≤ 1%
Accuracy: ±2% (70~100%, Adult, Pediatric) ±3% (70~100%, Neonatal)
Perfusion Index Range: 0.1-20%
PI Resolution: 0.1-9.99%: 0.01% 10-20%: 0.1%
Pulse measurement: 25~240 bpm
Resolution: 1 bpm
NIBP
Method: Oscillometric
Operation: Manual / Automatic / Continuous
AUTO measurement interval: Adjustable (2.5-120 min)
Unit of measure: mmHg/kPa
Measurement type: Systolic, Diastolic, Mean
Resolution: 1mmHg
Accuracy Max error of mean ± 5 mmHg
Max Standard Deviation: 8mmHg
NIBP pulse measurement range: 20~300 bpm
Resolution: 1 bpm
Temperature (2 channels, 1 probe supplied)
Measurement/alarm range: 15~50°C
Resolution: 0.1°C
Accuracy: ±0.2°C (with probe error included)
Printer (optional)
Thermal Paper: 48mm
Printing speed: 12, 25, 50 mm/s
Number of tracks 3
Diet
Power outlet: 100~240V AC, 1.4A, 50/60Hz
Rechargeable lithium battery: 2,600mAh
Dimensions: W:27.8 x D:12 x H:18.9cm
Weight: 3.5kg

code: LTD361
