Instrument designed as a replacement for the mercury sphygmomanometer, which is no longer usable in clinical practice.
Totally mercury-free, suitable for both medical and paramedical personnel,
It can also be useful as an educational tool for learning the technique of measuring blood pressure.

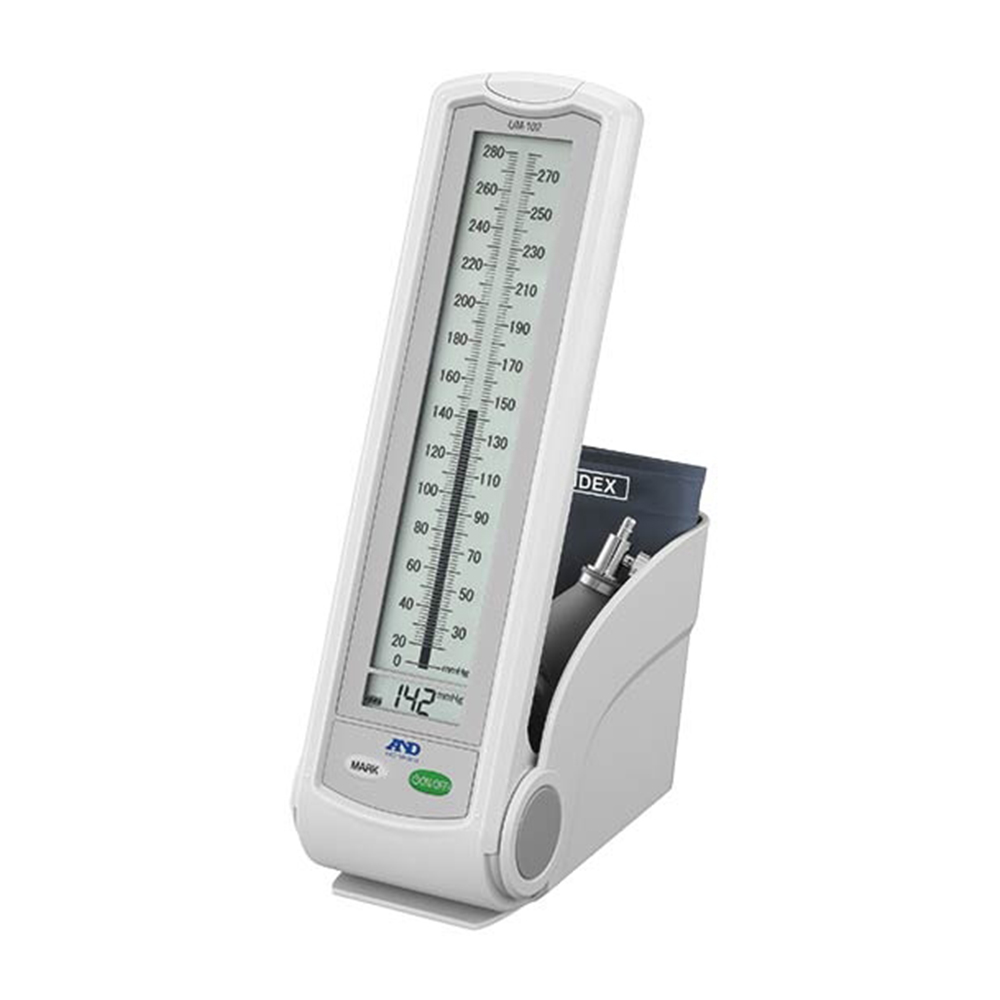

Graduated column, backlit with anti-glare system, adjustable to different angles for a better view of the values and to facilitate the application or replacement of cuffs and batteries.
Liquid crystal display, separate from the digital column, to display the heart rate at the end of the measurement.
Robust and lightweight ABS chassis resistant to chemicals; it can therefore be disinfected and cleaned even with antiseptic solutions such as ethanol or saline water.
Powered by alkaline batteries with an autonomy of approximately 2,000 measurements.
Clinically validated according to the International Protocol of the European Society of Hypertension (ESH) for measurement accuracy.
Wall mount, metal stand and tripod not included.

Characteristics:
carrying handle, located on the lower chassis;
new professional-use bracelets, latex-free, available in 5* different sizes and completely disinfectable with antiseptic solutions;
practical kit (optional) of metal tubes and fittings that facilitates the quick replacement of bracelets;
5-wheel stand, height adjustable not included.
Auscultatory measurement method using a stethoscope
Inflation pressure 0 – 280 mmHg
Graduated column division 2 mmHg
Heart rate measurement range 40 – 180 beats/minute
Accuracy: blood pressure: ± 3 mmHg – pulse: ± 5%
Bracelet from 22 to 32 cm
Dimensions UM-102A 98 (W) x 324 (H) x 67 (D) mm / UM-102B 98 (W) x 326 (H) x 202 (D) mm
Weight UM-102A 520 g excluding batteries / UM-102B 550 g excluding batteries
*adult bracelet included, circumference 22 – 32 cm



barcode: 5060006581410
code: UM-102B
