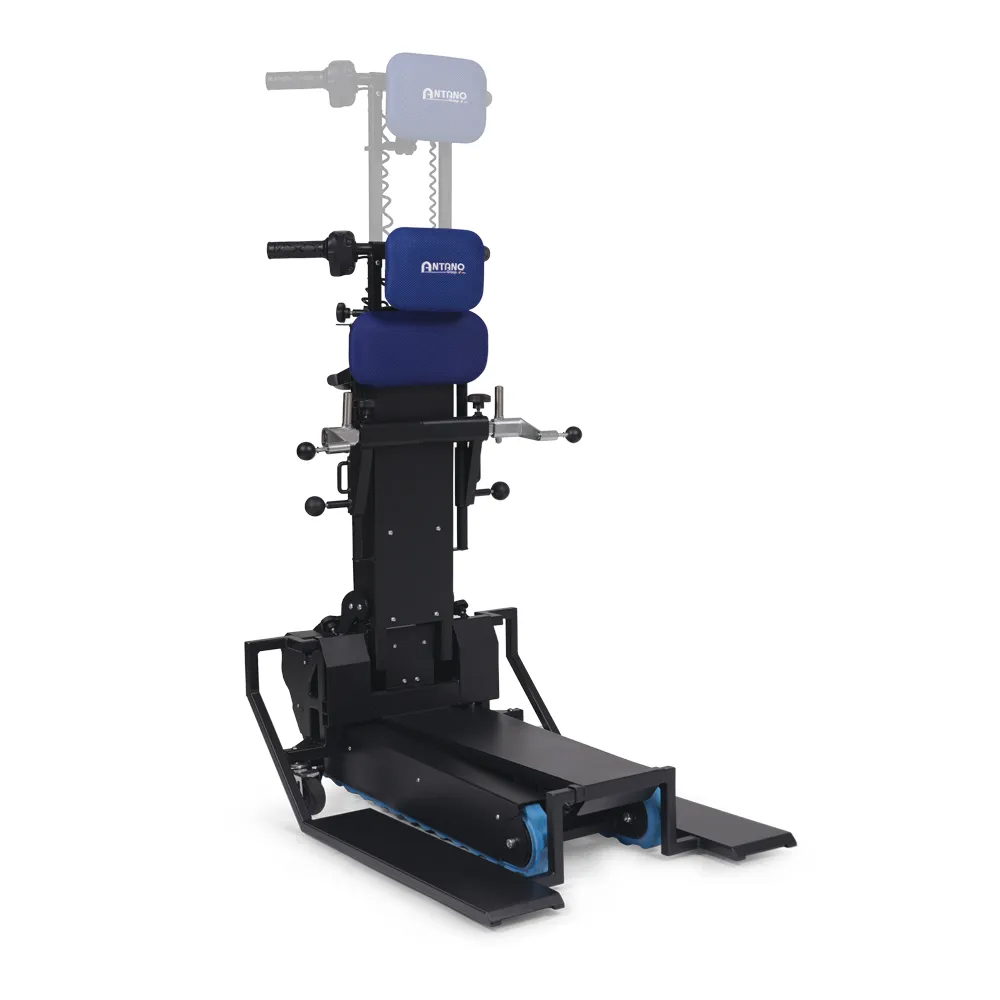

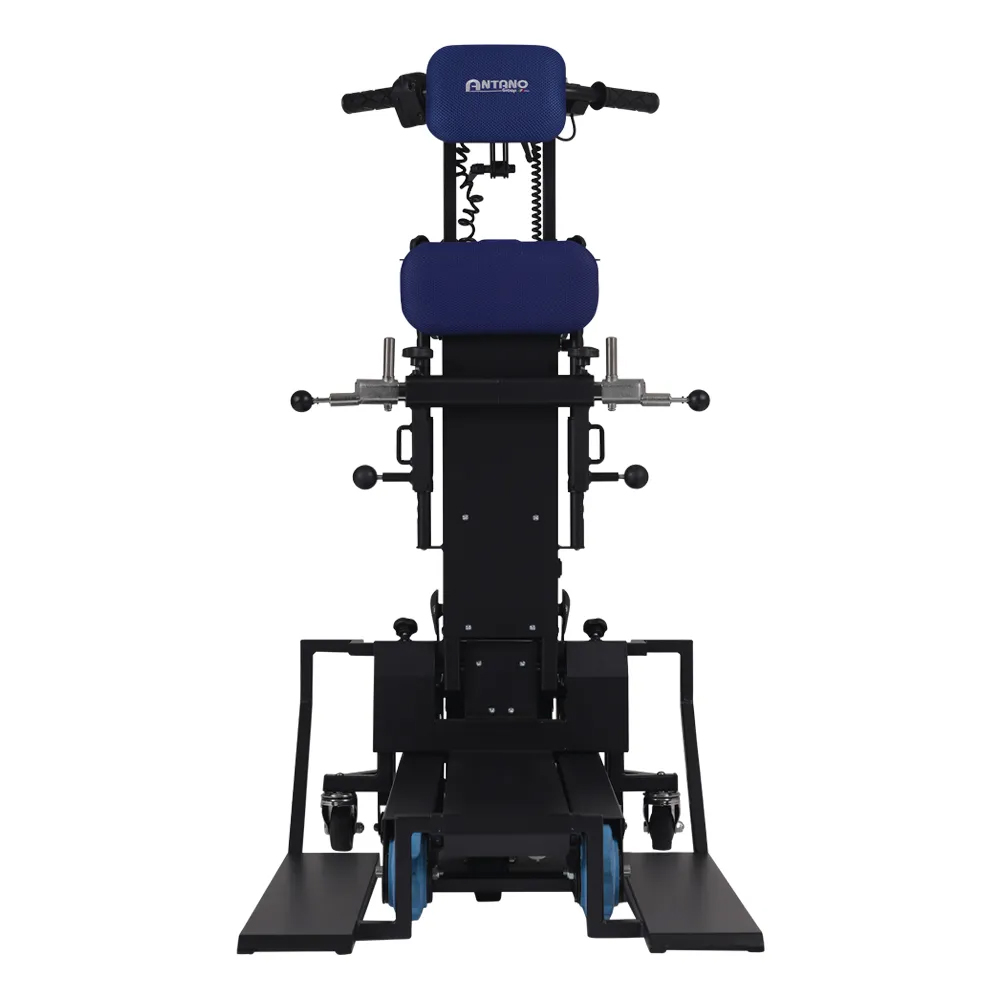

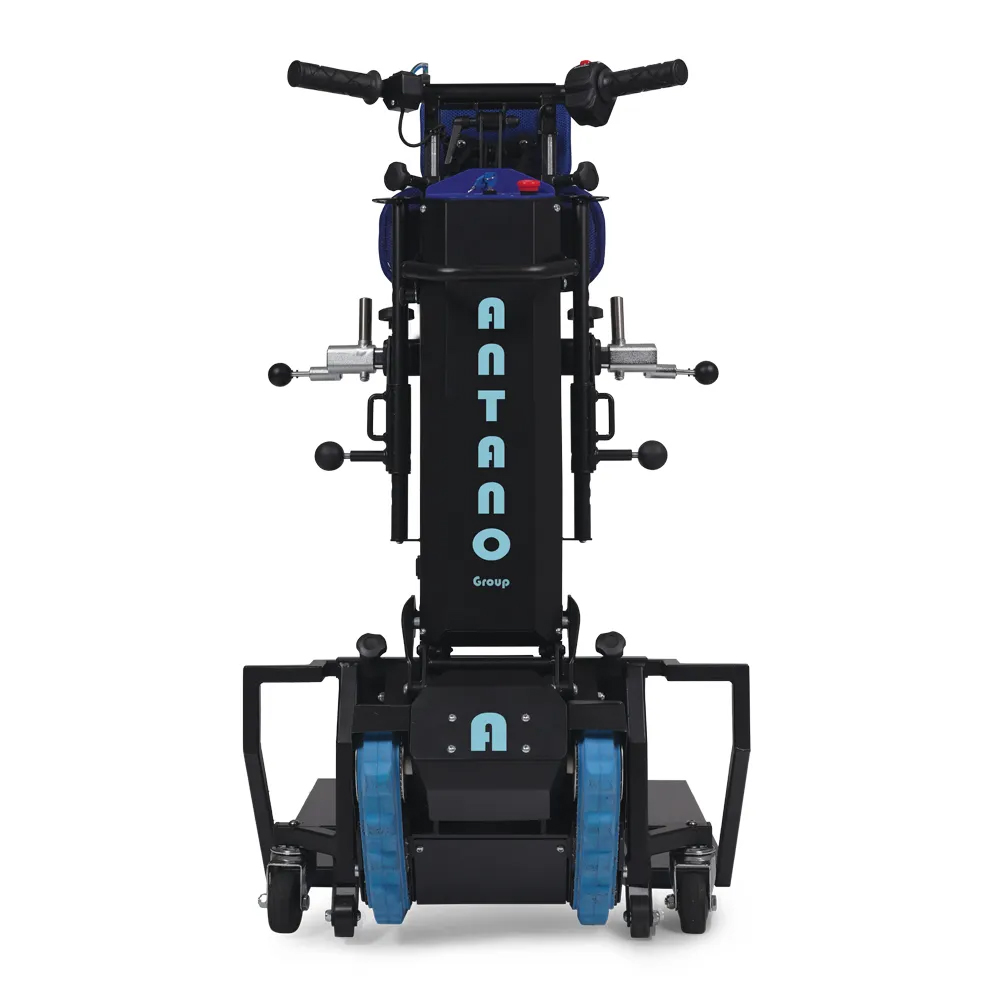

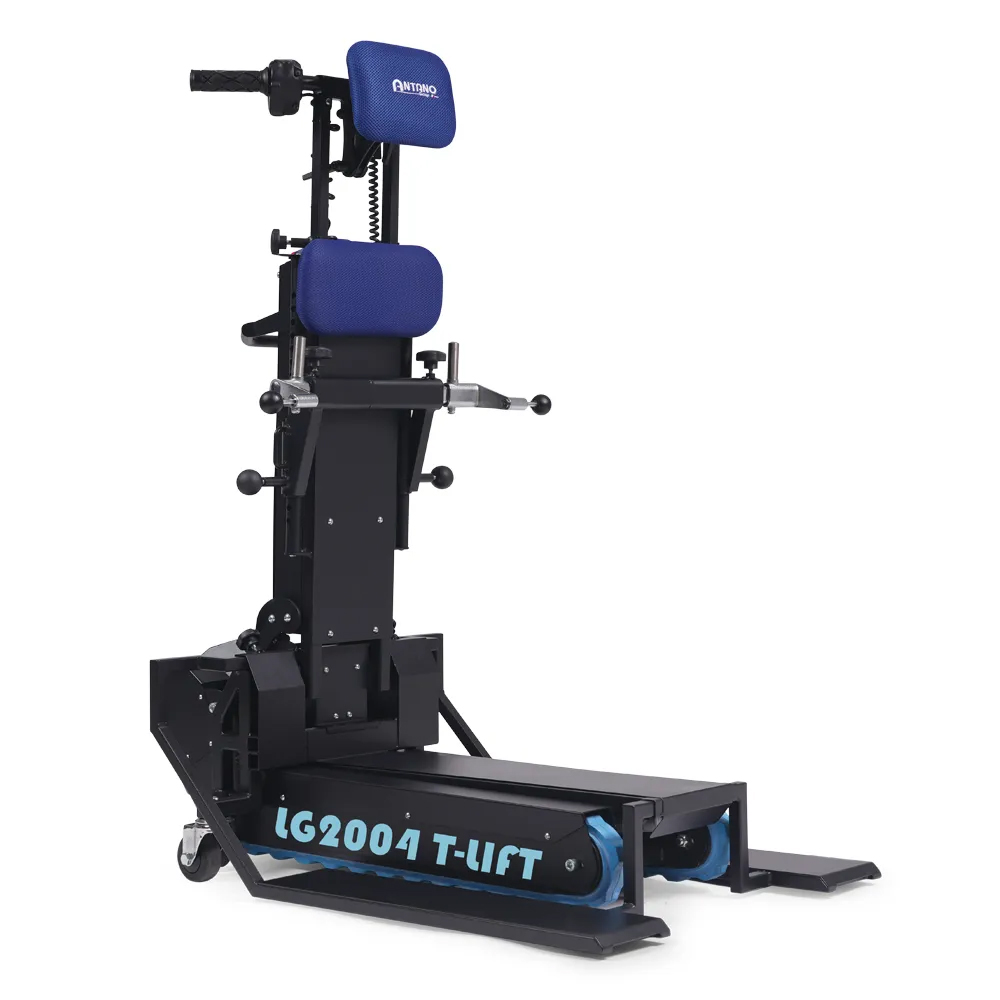

LG2004 T-LIFT is the new stairlift from Antano Group equipped with different types of
Ramps adaptable to any wheelchair model. Thanks to the intuitive LED display, the operator
Operate the stairlift effortlessly, displaying the recommended movements for a climb
and a safe descent.
Additionally, the ability to adjust the tilt up to 55 degrees and customize it according to
ensures a comfortable and upright position depending on the type of stairs and wheelchair the user is using
during use. With an exceptional load capacity of up to 300 kg, the stairlift
Antano Group is able to overcome any architectural barrier with confidence and maximum
safety.

COMFORT AND SAFETY
LG2004 T-LIFT TILT ADJUSTMENT
The inclination of the loading platform up to 55° via electric actuator, in addition to avoiding the
reclining effort before tackling the stairs, allows the user to always have a comfortable position
straight, safe and comfortable.

LED DISPLAY
The operator maneuvers the stairlift effortlessly, displaying the recommended movements for safe ascent and descent.

BATTERY INDICATOR
TILT BUTTON
THROTTLE KNOB
GEAR BUTTON (FORWARD/BACKWARD)
IGNITION KEY
EMERGENCY BUTTON
RUDDER ADJUSTMENT
3D WHEELCHAIR ANCHORAGE SUPPORT

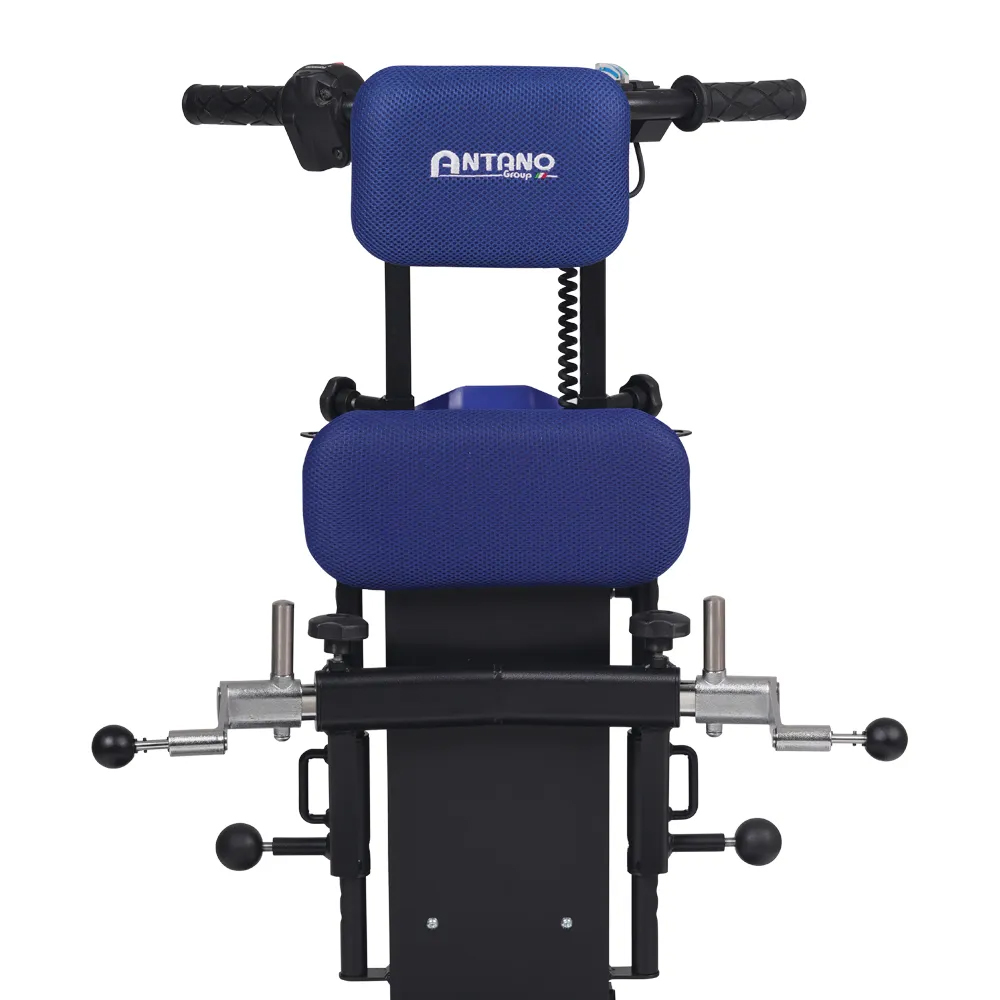

MULTI-POSITION BACKREST
The backrest can be adjusted to different heights. It is recommended to position the backrest low.
with the low platform, and up with the high platform.

WHEELCHAIR ATTACHMENT ADJUSTMENT
Minimum adjustment 16 cm, maximum 24 cm

ADJUSTABLE HEADREST

For this type of product, being an item for medical and/or personalized use, it is not possible to request a RETURN/WITHDRAWAL and REFUND of the product itself for health, hygiene and product safety reasons.



barcode: 8052109691612
code: LG2004 T-LIFT
