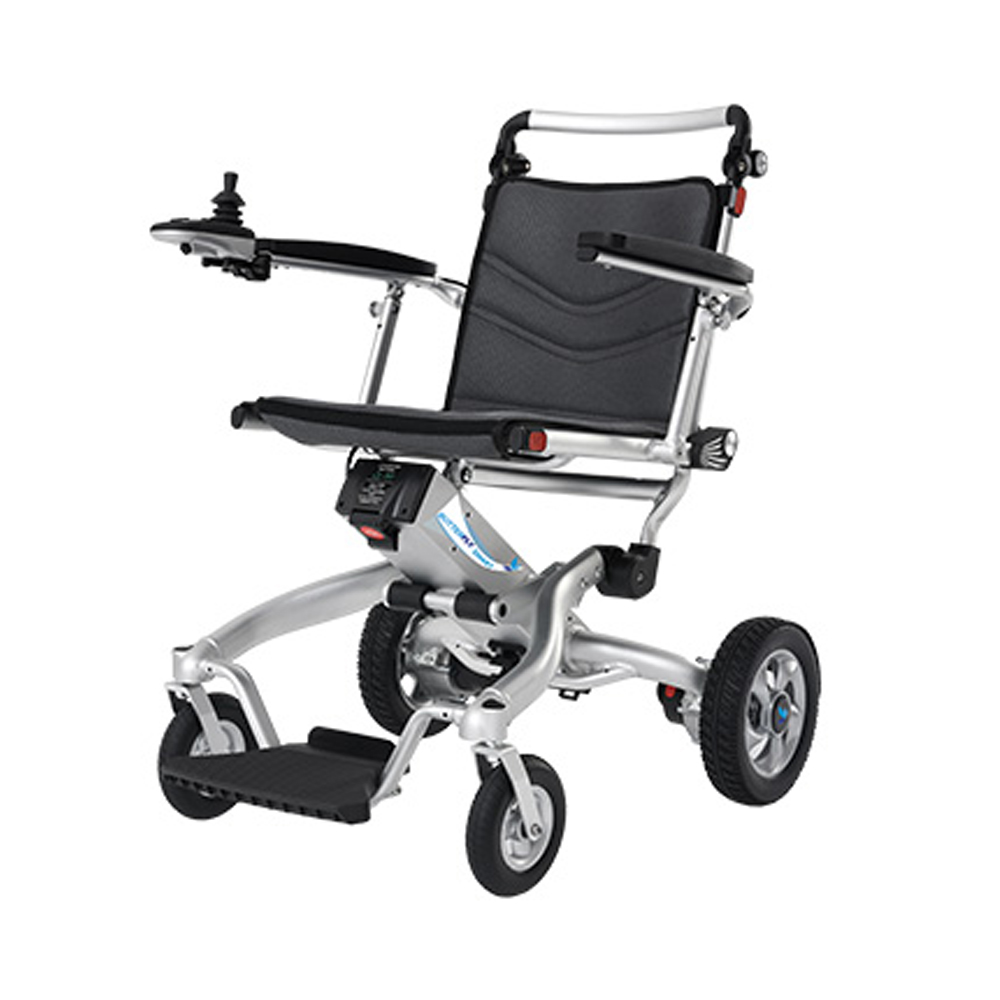

MODEL PL001-7002
Dimensions (Unfolded): Length x Width x
Depth 900*620*930mm（35.4“*24.4”*36.6”）
Dimensions (Folded):
Length x Thickness x Depth 800*620*320mm(31.4”*24.4”*12.6”)
Maximum user weight 120kg (260 lbs)
Device weight 23kg (with battery) / 20.5kg (without battery)
Maximum slope 6 degrees
Distance that can be traveled on a full charge
Theoretical continuous driving range: 24.3km
Distance that can be covered while performing maneuvers: 11.0km
Maximum speed 6 km/h
Turning radius 720 mm (28.3”)
Maximum obstacle clearance height 35mm

Motor
Brushless DC Motor Type
Rated power 140W
Input voltage/current DC 24V
Quantity 2
Braking system Electromagnetic brake
Braking distance at maximum speed: ＜1 m

Drums
Lithium Battery Type
Nominal Capacity 12 Ah
Output voltage DC 24V (charging current 2A, +2 9.4V, external charger c, IPX1)
Quantity 1

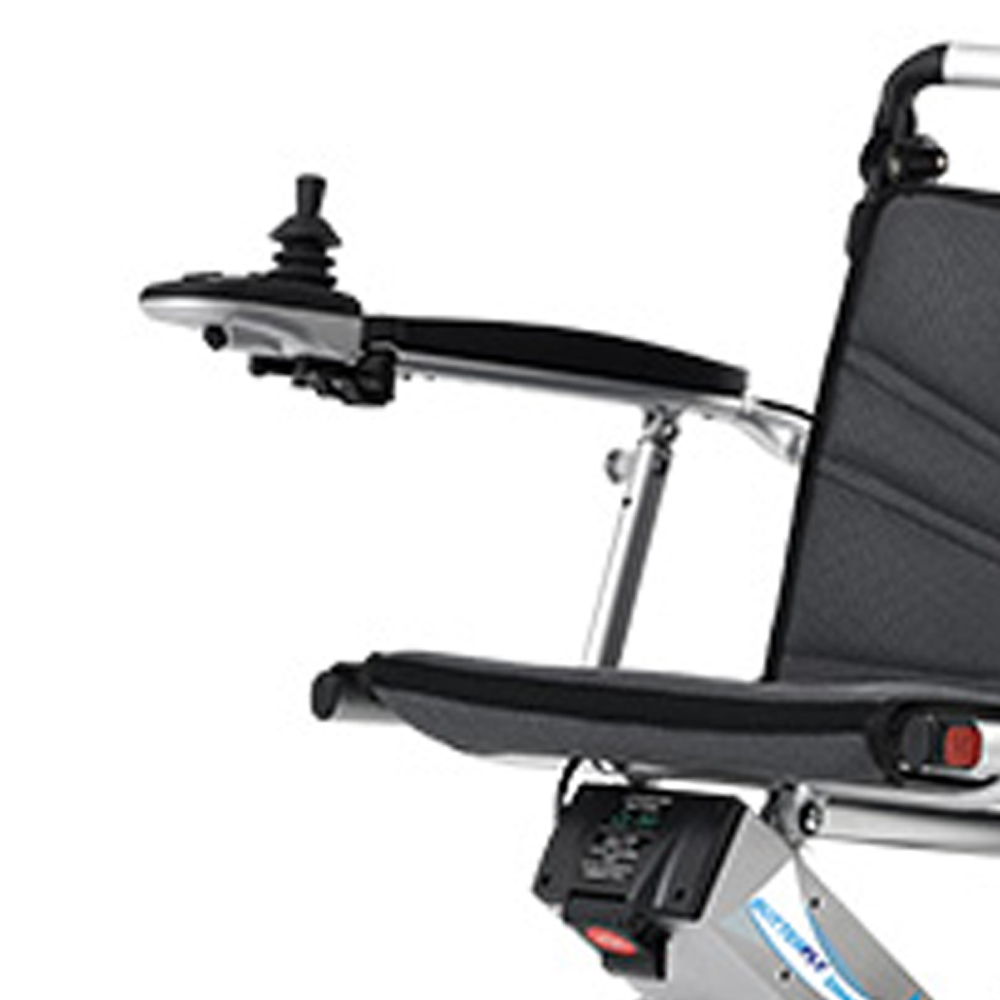

Controller
Type Brushless dual drive tilt controller
Input power 280W
Input voltage/current DC 24V/12A withstand peak: 15A

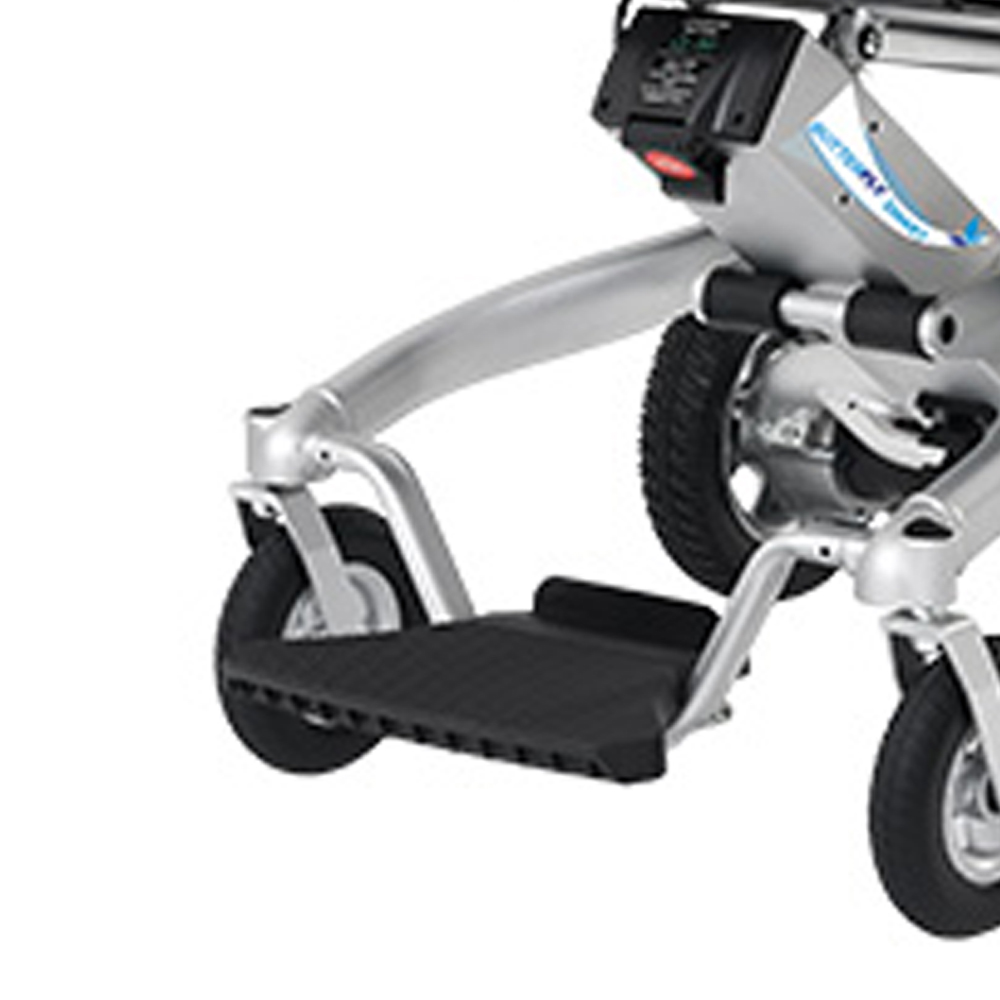

Front wheel
Wheel Diameter x Tire Width 178mm x 35mm (7" ´ 1.4”)
Solid Tire Type
PU material
Quantity 2

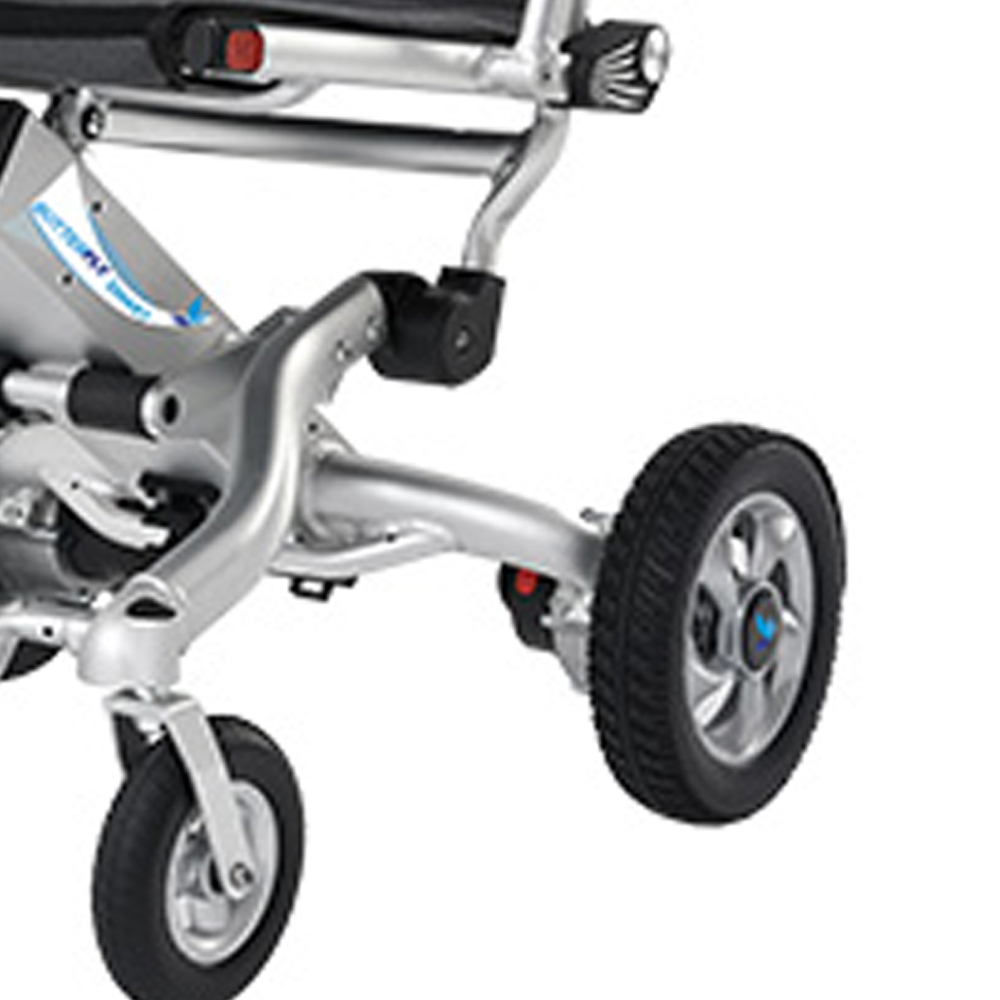

Rear wheel
Wheel Diameter x Tire Width 254mm x 55mm (10" ´*2.2")
Solid Tire Type
PU material／Rubber
Quantity 2

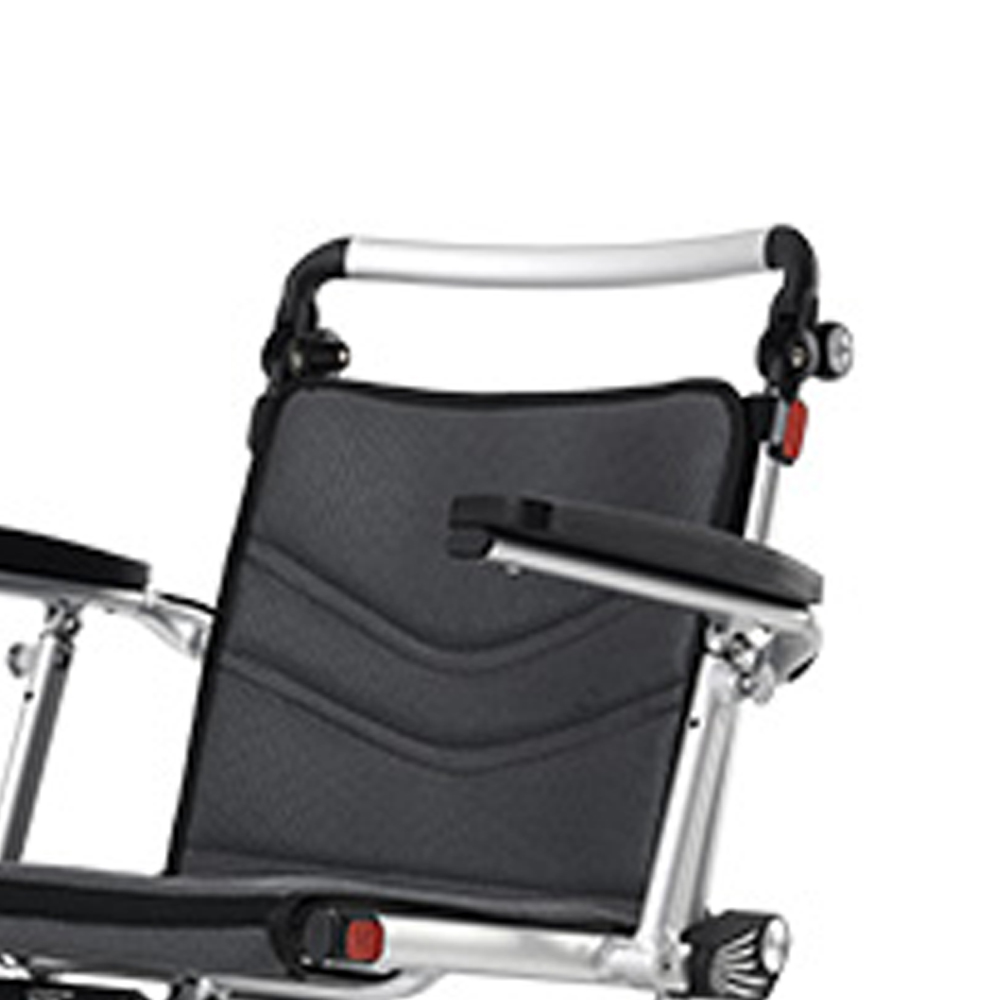

Back
Adjustment mode None
Angle adjustment None



barcode: 06970575220537
code: PL001-7002
