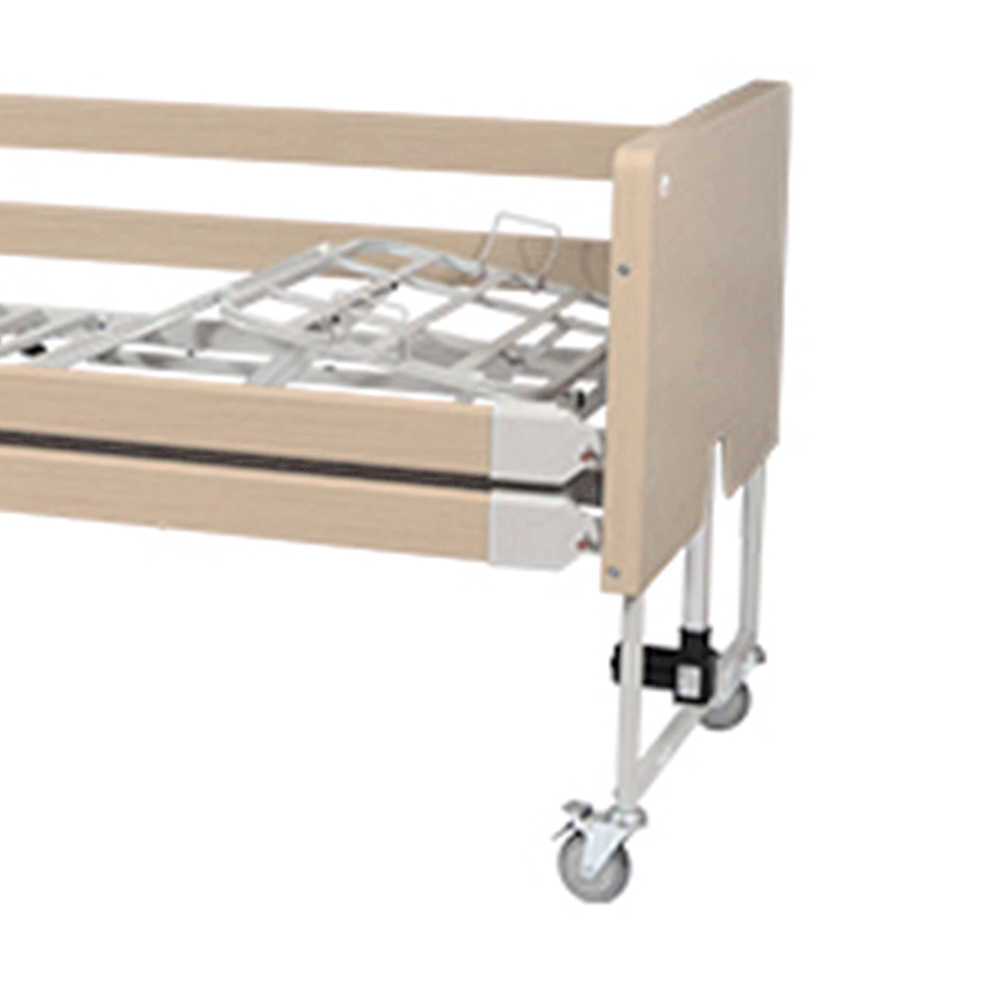

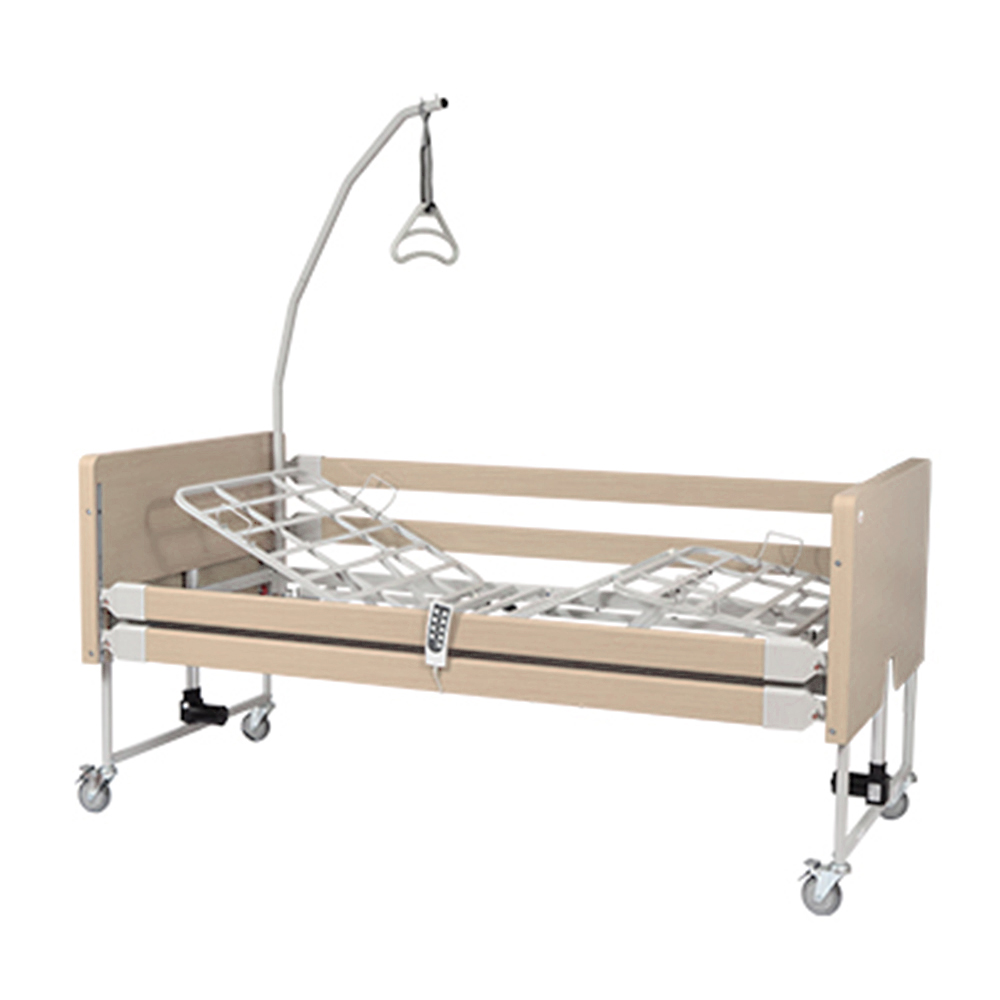

Electric bed with metal base and square-shaped wooden structure.
• Height-adjustable side containment sides
• Mattress retaining blocks on the base
• Four swivel wheels with parking brake
• Electric adjustment of the backrest and thigh/leg area
• Height adjustment of the bed base
• Trendelenburg and Anti-Trendelenburg function thanks to two actuators mounted underneath
headboard and footboard

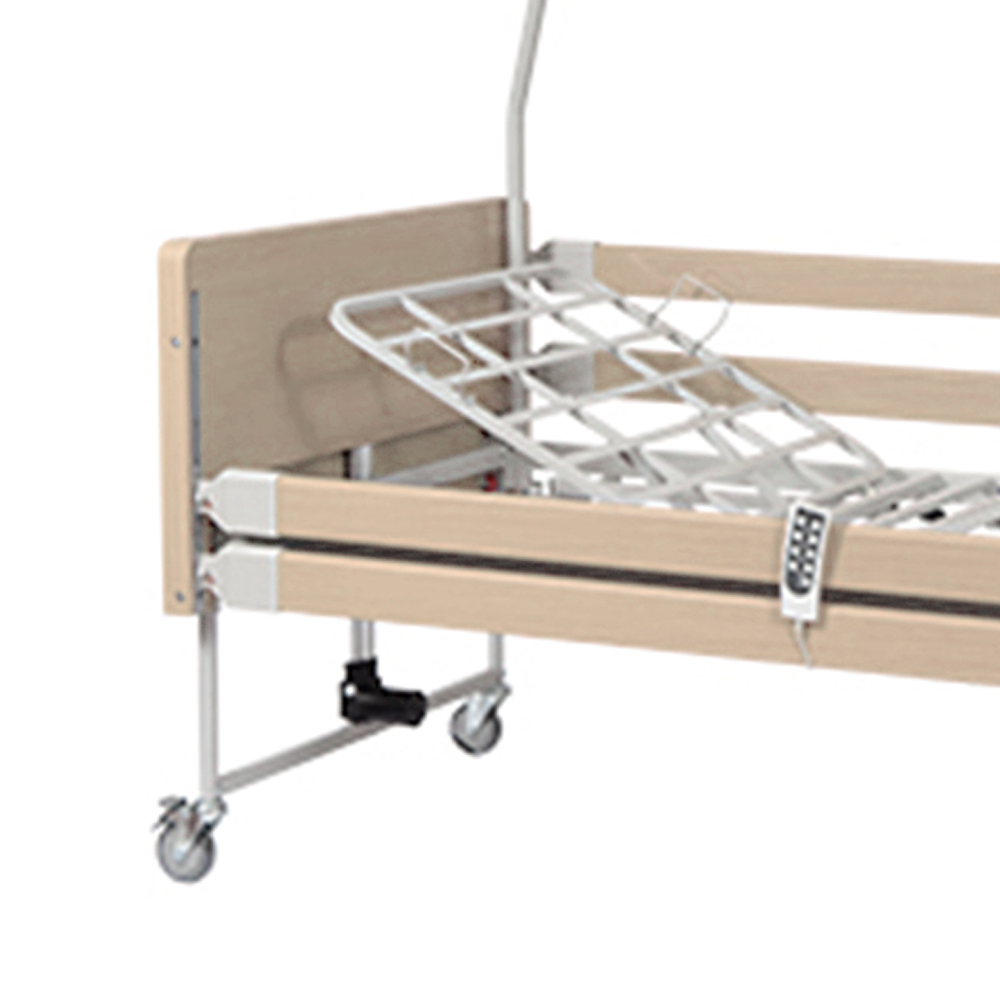

• Remote control equipped with Nurse Lock device which allows the activation of some
functions only by authorized personnel

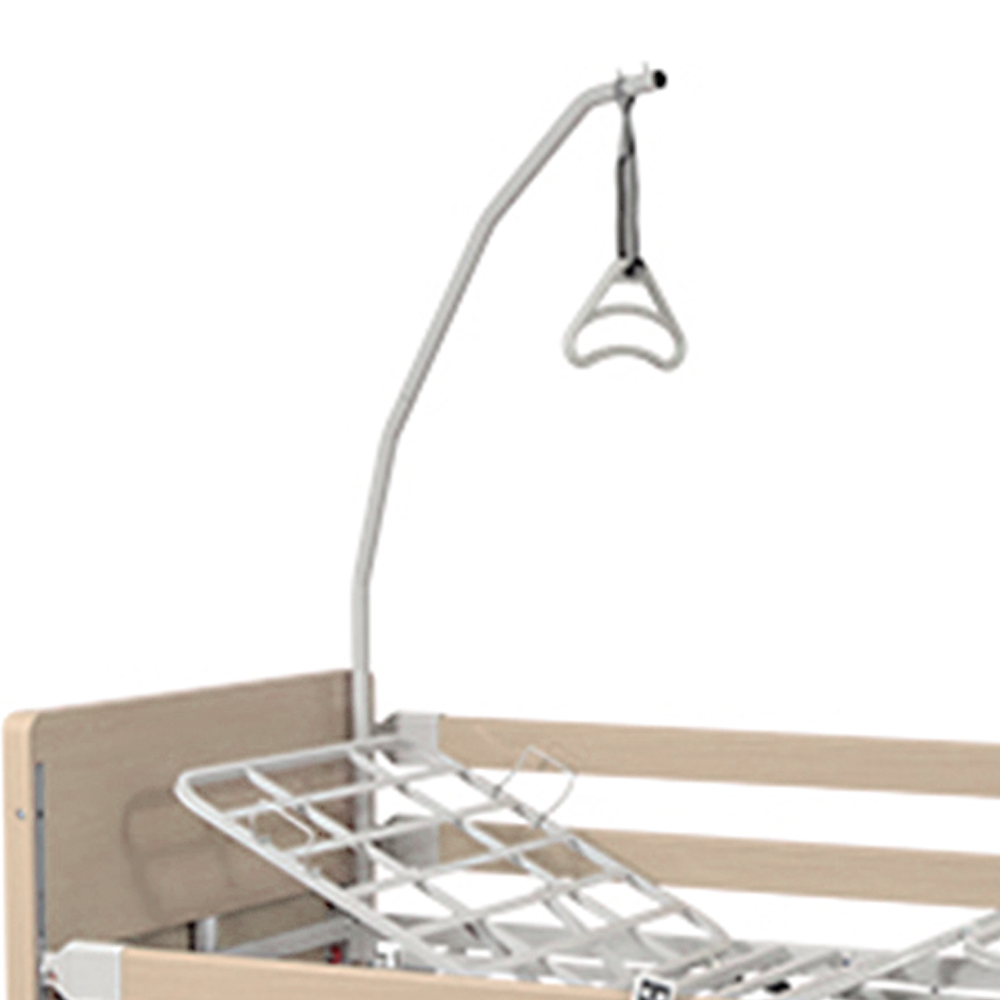

• Standard patient lifting triangle compliant with EN 60601-1
• Back section adjustment 0°-70°
• Thigh section adjustment 0°- 40°, simultaneously with knee flexion 0°- 13°
• Side guards available as accessories code 18/23/I

Maximum load: 180 kg
Dimensions Net width: 89 cm
Maximum overall width: 103 cm
Net length: 200 cm
Maximum overall length: 212 cm
Height of the bed base from the ground: adjustable from 31 cm to 71 cm
Height of footboard and headboard: 43 cm
User load 135 kg
Power Supply CONTROL UNIT
Type: Motek Twinmate
Input voltage: AC 230V, ±10%, 50Hz
Intermittent duty (periodic engine operation): 10% (2 min. – 18 min.)
Sound pressure level: Max 50 dB
PUSHBUTTON PANEL
Type: Motek
Electric motors for bed level adjustment
Type: Motek Gas Spring
Intermittent duty (periodic engine operation): 10% (2 min. – 18 min.)
Electrical protection class II
Materials Metal mesh
Wooden structure



barcode: 08054181768862
code: 15000013/G
